TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)
TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)
TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)
  • Load image into Gallery viewer, TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)
  • Load image into Gallery viewer, TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)
  • Load image into Gallery viewer, TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)

TAG Tow Ball Mount for Toyota Landcruiser (08/2007 - on)

$119.00
$119.00
Sold out

Tax included. Shipping calculated at checkout.

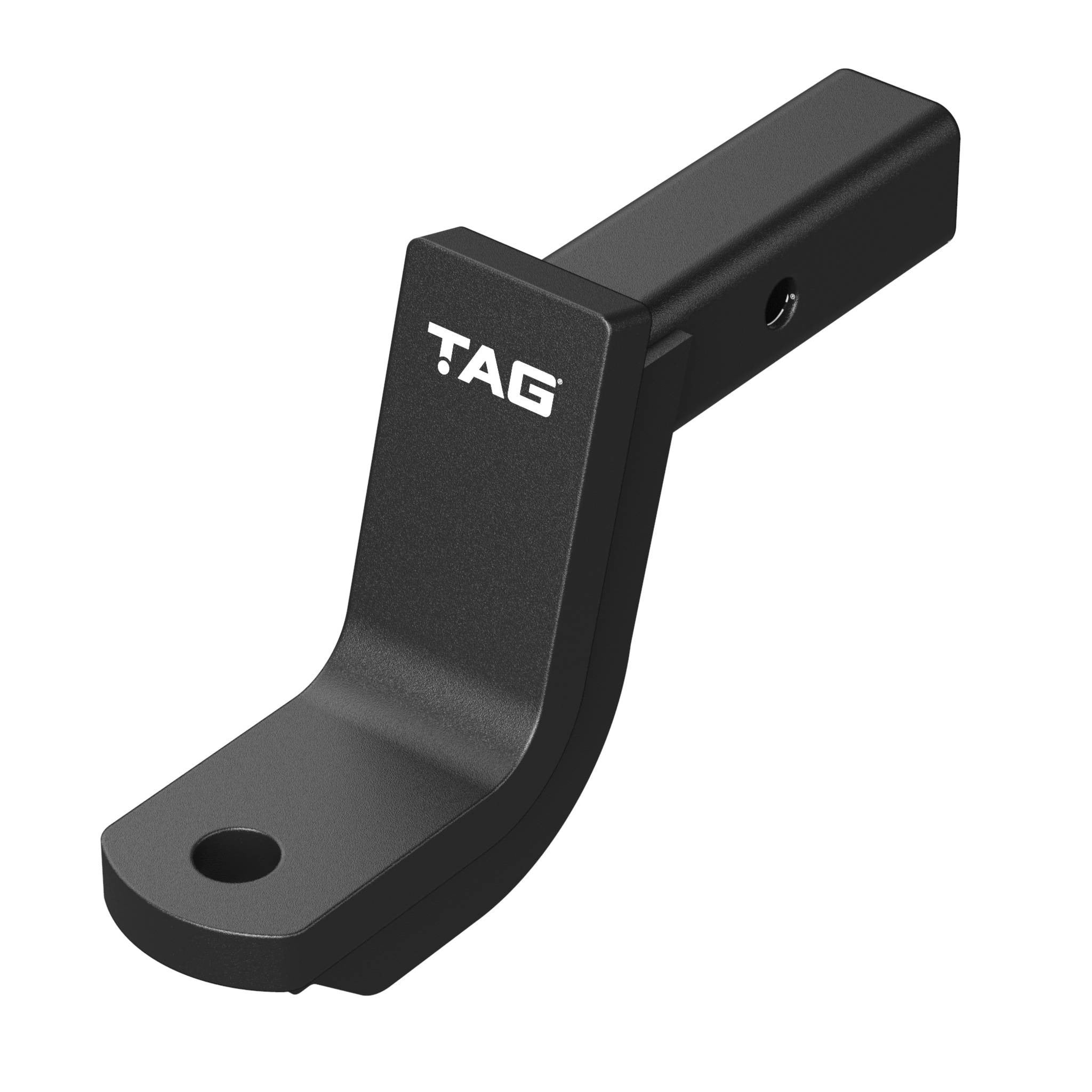

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

  • Suits Toyota Landcruiser 200 Series

  • 219mm Long (Hitch Pin Hole to Tow Ball Hole)

  • 105° Tongue Face

  • Drop: 88mm

  • Can be mounted in Drop Mode Only

  • 3500kg Gross Trailer Weight

  • 350kg Ball Weight

  • Durable Powder-Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

Tow Ball, R-Clip & Hitch Pin sold separately.

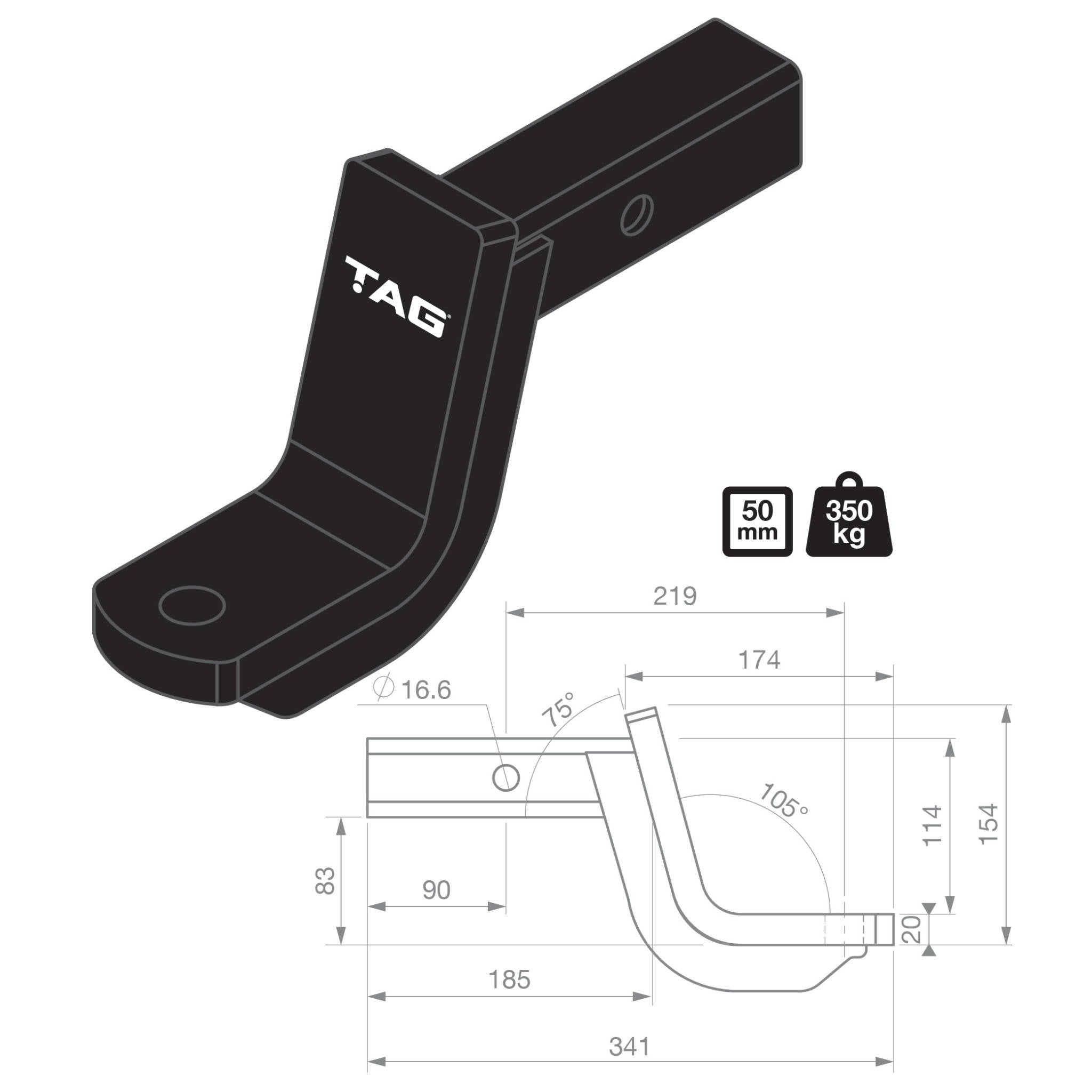

Specifications
  • Tow Ball Mount Class: Heavy Duty (Class 4)
  • Gross Trailer Weight: 3500
  • Ball Weight [kg]: 350
  • Hitch Type: Heavy Duty 50mm Square
  • Drop: 88mm
  • Rise: Cannot be used in Rise Mode
  • Length: 341
  • Length (Pin To Ball): 219mm
  • Front to Pin (mm): 251
  • Back to Pin (mm): 90
  • Tongue Face: 105°
  • Coating: Powder Coated
Toyota Landcruiser (08/2007 - 12/2021)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 10/2015 06/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel GX, LC200 ALTITUDE SPECIAL EDITION, LC200 GX Automatic 4WD
TOYOTA LANDCRUISER 10/2015 12/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel GXL, LC200 GXL Automatic 4WD
TOYOTA LANDCRUISER 10/2015 12/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel LC200 SAHARA, LC200 VX, SAHARA, VX Automatic 4WD
TOYOTA LANDCRUISER 03/2012 01/2020 Wagon 200 Series 1UR-FSE | 4.6L | Petrol URJ202R Automatic 4WD
TOYOTA LANDCRUISER 03/2012 01/2020 Wagon 200 Series 1UR-FSE | 4.6L | Petrol URJ202R Automatic 4WD
TOYOTA LANDCRUISER 01/2012 08/2019 Wagon URJ202 1UR-FE | 4.6L | Petrol V8 4WD
TOYOTA LANDCRUISER 11/2011 09/2015 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R Automatic 4WD
TOYOTA LANDCRUISER 11/2007 09/2015 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R 4WD
TOYOTA LANDCRUISER 11/2007 09/2015 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R Automatic 4WD
TOYOTA LANDCRUISER 11/2007 09/2015 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R Automatic 4WD
TOYOTA LANDCRUISER 09/2007 07/2015 Wagon VDJ200 1VD-FTV | 4.5L | Diesel D-4D 4WD
TOYOTA LANDCRUISER 08/2007 01/2012 Wagon UZJ200 2UZ-FE | 4.7L | Petrol V8 4WD

Download Instructions for (L4171)
