TAG Tow Ball Mount and Direct Fit Wiring Harness Kit For Toyota Hilux N80 (10/2015 - on)

Regular price
$416.32
Sale price
$416.32
Regular price
Sold out
Unit price
per

Tax included. Shipping calculated at checkout.

TO SUIT HILUX WITH INTEGRATED TOWBAR SR5

This kit includes

  • TAG Tow Ball Mount

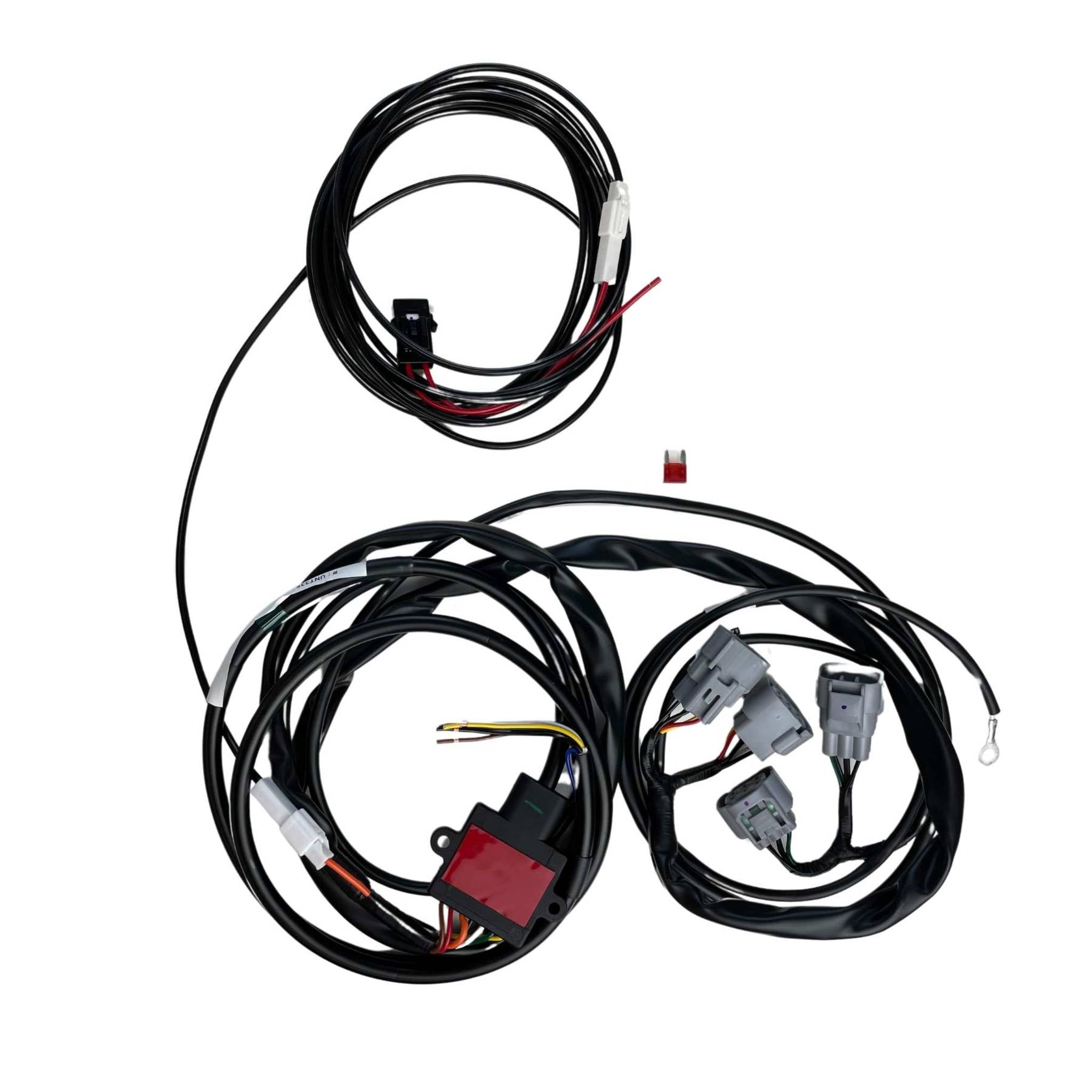

  • TAG Direct Fit Wiring Harnerss

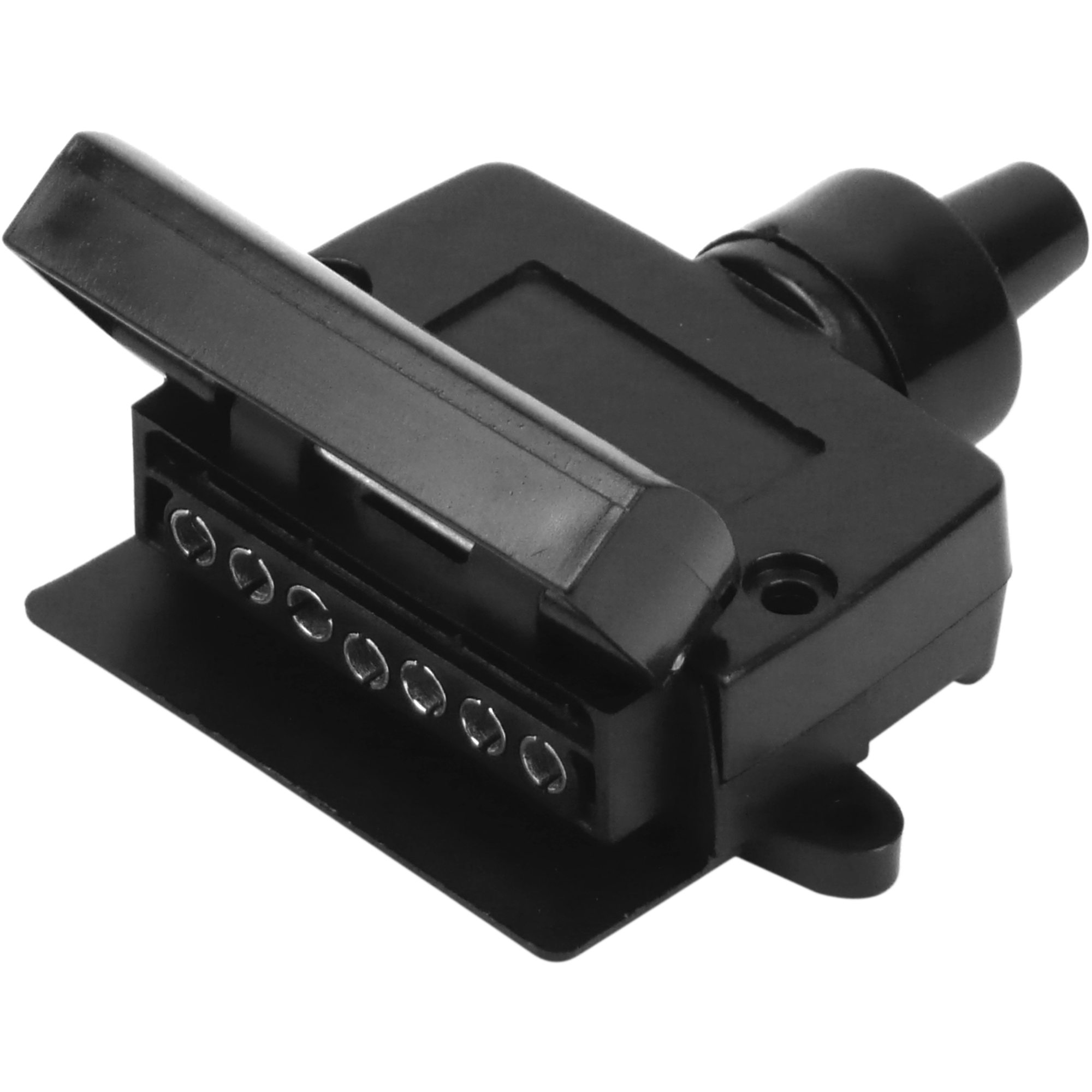

  • TAG 7 Pin Flat Socket Vehicle Side

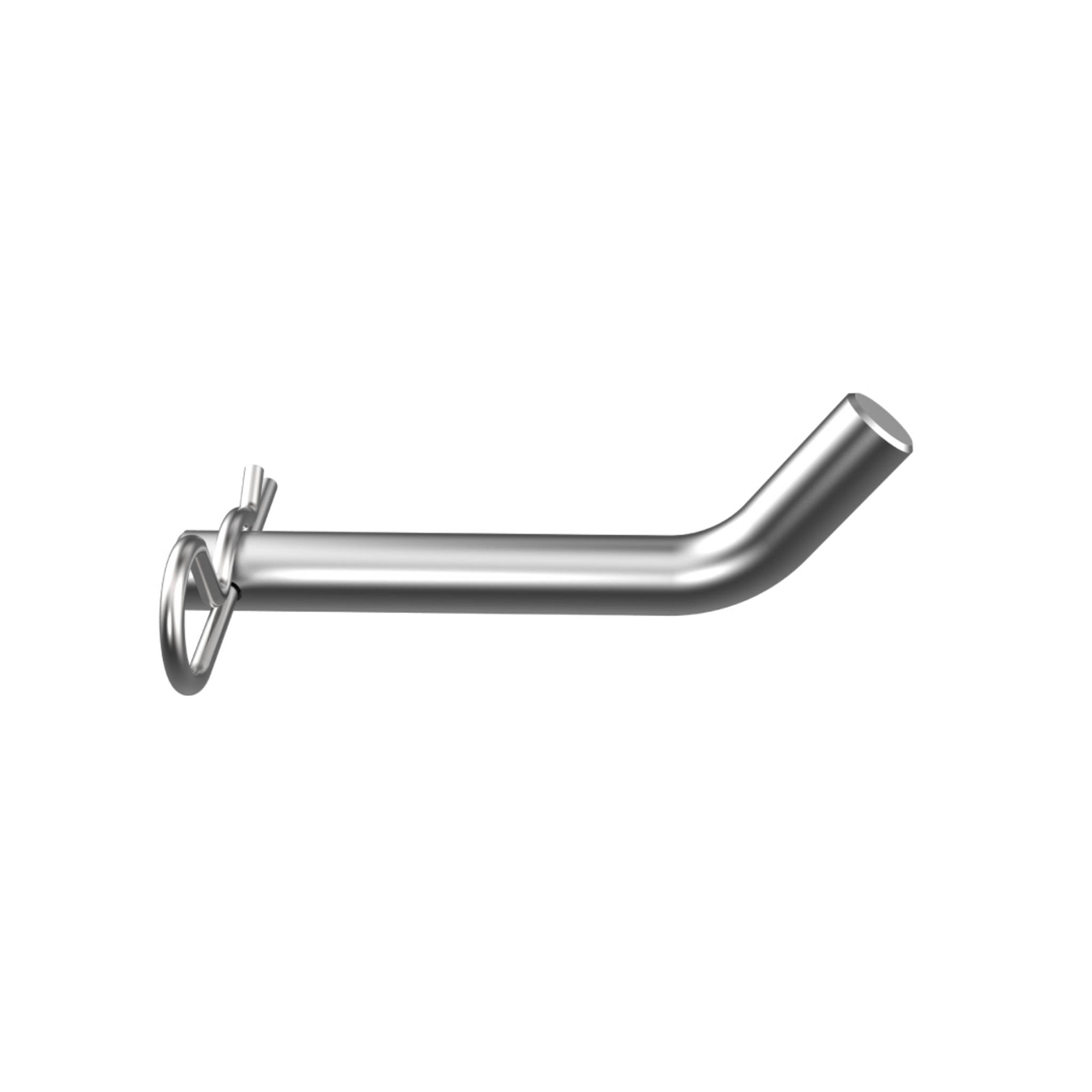

  • Pull Pin with Clip

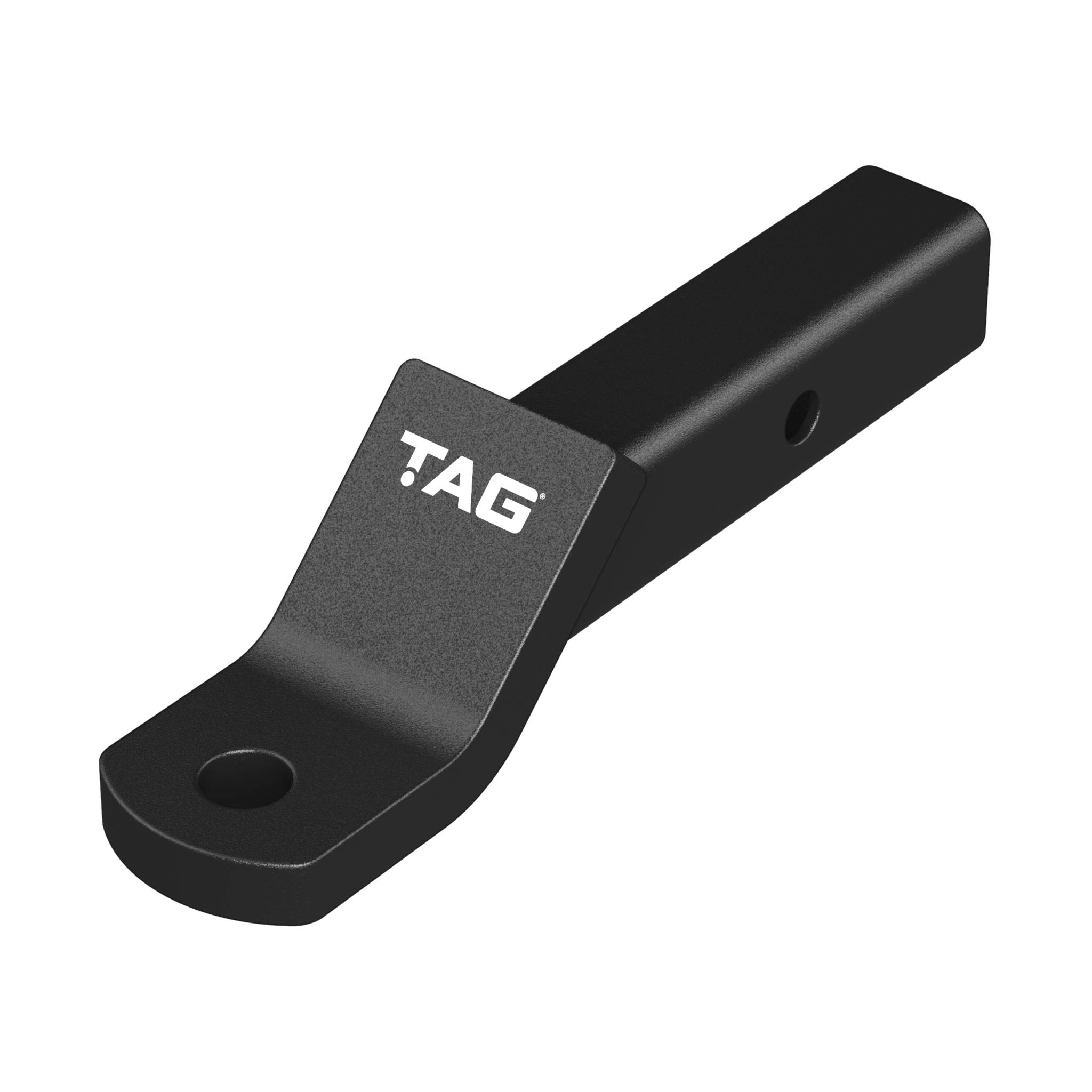

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

  • 208mm Long (Hitch Pin Hole to Tow Ball Hole)

  • 135 Tongue Face

  • Drop: 0mm

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

  • 3500kg Gross Trailer Weight

  • 350kg Ball Weight

  • Durable Powder-Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

Tow Ball sold separately.

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications
  • Fitting Time [min.]: 60
  • Reverse Sensor Cut Off: Automatic
  • Diagnostic Coding: Not Applicable
  • Fog Cut Off: Automatic
  • Wiring Option: Direct Fit ECU

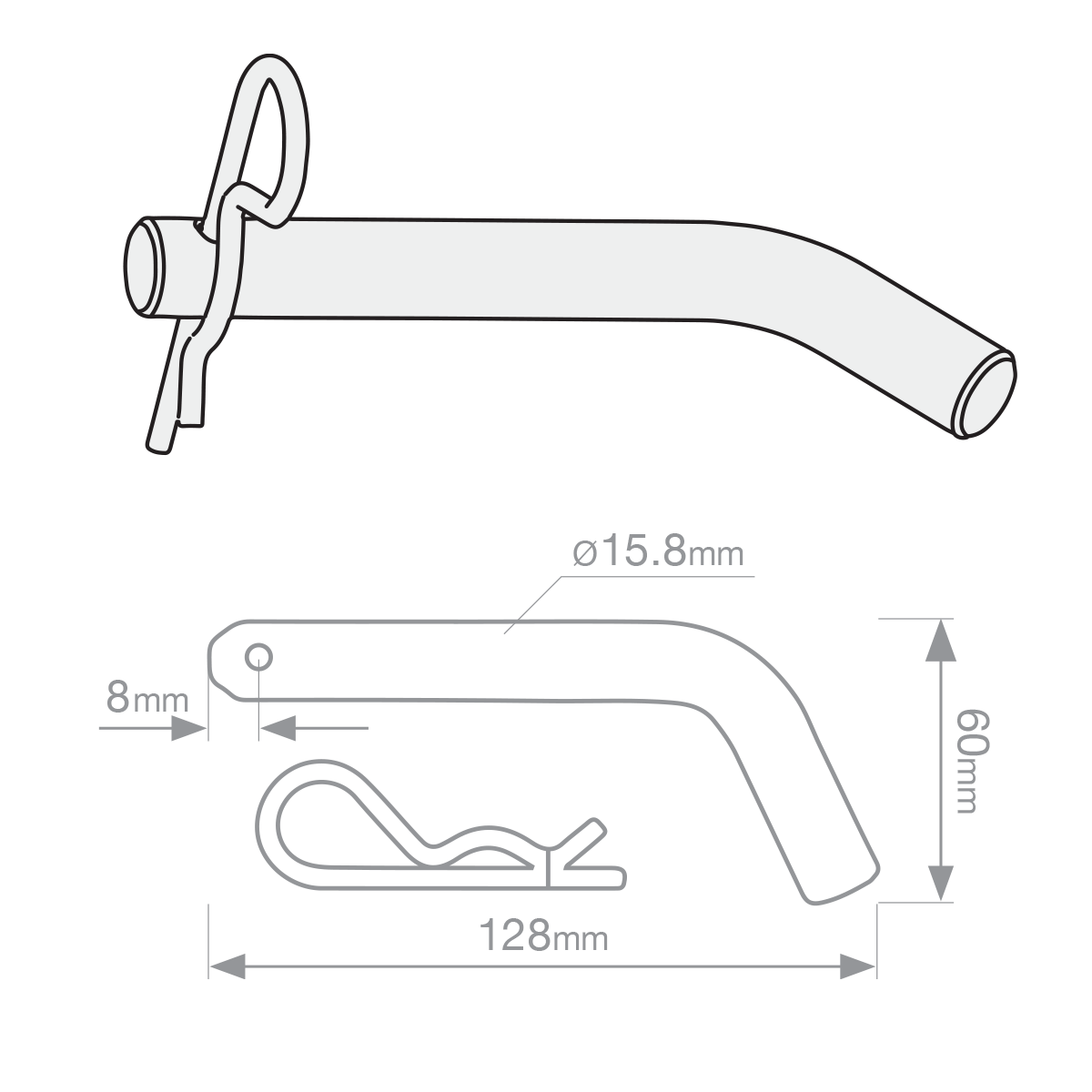

  • Type: Hitch Pin (UNT080)
  • Type: Plugs & Sockets (UNT032)
  • Coating: Zinc Plated (UNT080)
  • Coating: Powder Coated (L4045)
  • Style: 7 Pin Flat
  • Hitch Type: Heavy Duty 50mm Square
  • Tow Ball Mount Class: Heavy Duty (Class 4)
  • Gross Trailer Weight: 3500
  • Ball Weight [kg]: 350
  • Drop: 18mm
  • Rise: Can be used in Drop or Rise mode

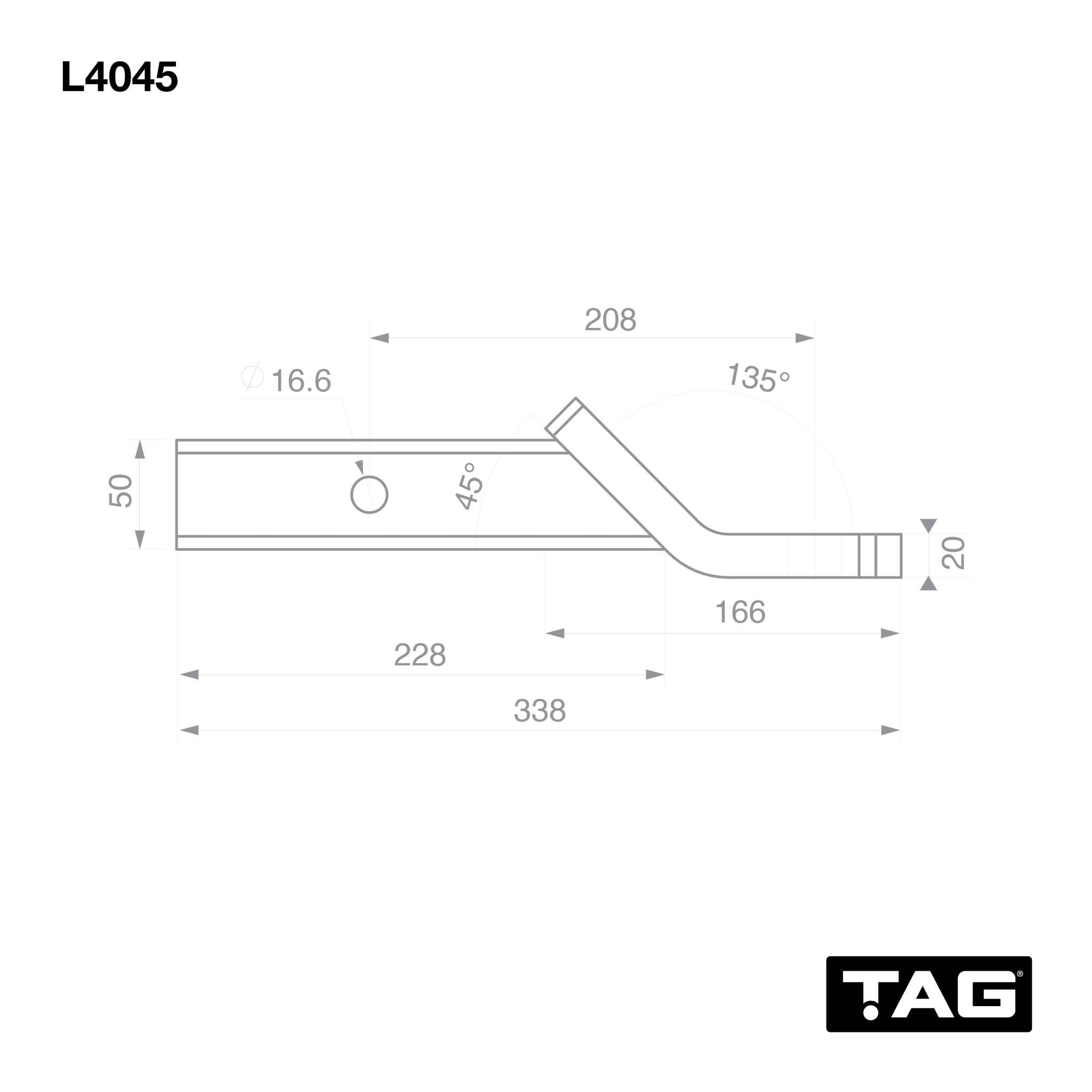

  • Length (Pin To Ball): 208mm
  • Front to Pin (mm): 250
  • Back to Pin (mm): 90
  • Tongue Face: 135°
  • Length: 338
Toyota Hilux (10/2015 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA HILUX 10/2018 - Ute GUN126 1GD-FTV | 2.8L | Diesel Rogue| Rugged| Rugged X 4WD
TOYOTA HILUX 10/2015 - Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
TOYOTA HILUX 10/2015 - Cab Chassis GUN123 1GD-FTV | 2.8L | Diesel SR RWD
TOYOTA HILUX 10/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
TOYOTA HILUX 10/2015 - Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
TOYOTA HILUX 10/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
TOYOTA HILUX 10/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 AWD
TOYOTA HILUX 10/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 Hi-Rider RWD
TOYOTA HILUX 10/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR Hi-Rider RWD
TOYOTA HILUX 10/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
TOYOTA HILUX 10/2015 - Ute GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
TOYOTA HILUX 10/2015 - Cab Chassis GUN112_, GUN122_, GUN125_, GUN135_ 2GD-FTV | 2.4L | Diesel TDi RWD
TOYOTA HILUX 10/2015 - Cab Chassis TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
TOYOTA HILUX 10/2015 - Cab Chassis TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 10/2015 - Ute TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
TOYOTA HILUX 10/2015 - Ute TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 10/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel TDi AWD
TOYOTA HILUX 10/2015 - Ute GUN112R, GUN120R, GUN122R, GUN135R 2GD-FTV | 2.4L | Diesel TDi RWD
TOYOTA HILUX 10/2015 - Ute TGN111R, TGN121R, TGN136R 2TR-FE | 2.7L | Petrol VVTi RWD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE EXTRA CAB Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel ROGUE, RUGGED, RUGGED X, SR5, SR5+ Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR HI-RIDER Automatic/Manual RWD
TOYOTA HILUX 10/2015 04/2020 Ute GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 10/2015 04/2020 Ute GUN136 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 10/2015 06/2019 Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
TOYOTA HILUX 10/2015 06/2019 Ute GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
TOYOTA HILUX 10/2015 09/2019 Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 EXTRA CAB Automatic 4WD
TOYOTA HILUX 10/2015 09/2017 Cab Chassis GUN123R 1GD-FTV | 2.8L | Diesel SR Manual RWD
TOYOTA HILUX 10/2015 09/2017 Ute GUN123R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Manual RWD
TOYOTA HILUX 10/2015 07/2017 Ute GUN123 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 10/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR AWD
TOYOTA HILUX 10/2015 10/2017 Ute GGN120 1GR-FE | 4.0L | Petrol SR RWD
TOYOTA HILUX 10/2015 09/2017 Ute GGN120R 1GR-FE | 4.0L | Petrol SR Automatic RWD
TOYOTA HILUX 10/2015 09/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR5 Automatic 4WD
TOYOTA HILUX 10/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR5 AWD
TOYOTA HILUX 10/2015 09/2017 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 HI-RIDER Automatic RWD
TOYOTA HILUX 10/2015 07/2017 Ute GGN125, GGN135 1GR-FE | 4.0L | Petrol V6 VVTi AWD
TOYOTA HILUX 10/2015 07/2017 Ute GGN120R, GGN135R 1GR-FE | 4.0L | Petrol V6 VVTi RWD
TOYOTA HILUX 10/2015 10/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR Automatic 4WD
TOYOTA HILUX 10/2015 09/2015 Ute KUN112R 2KD-FTV | 2.5L | Diesel SR EXTRA CAB Manual RWD
