TAG XR Towbar and wiring kit for tub models with rear step only. Wiring harness in this kit fits (07/2017 - 02/2024).
This Kit Includes:
TAG 4x4 Recovery Towbar

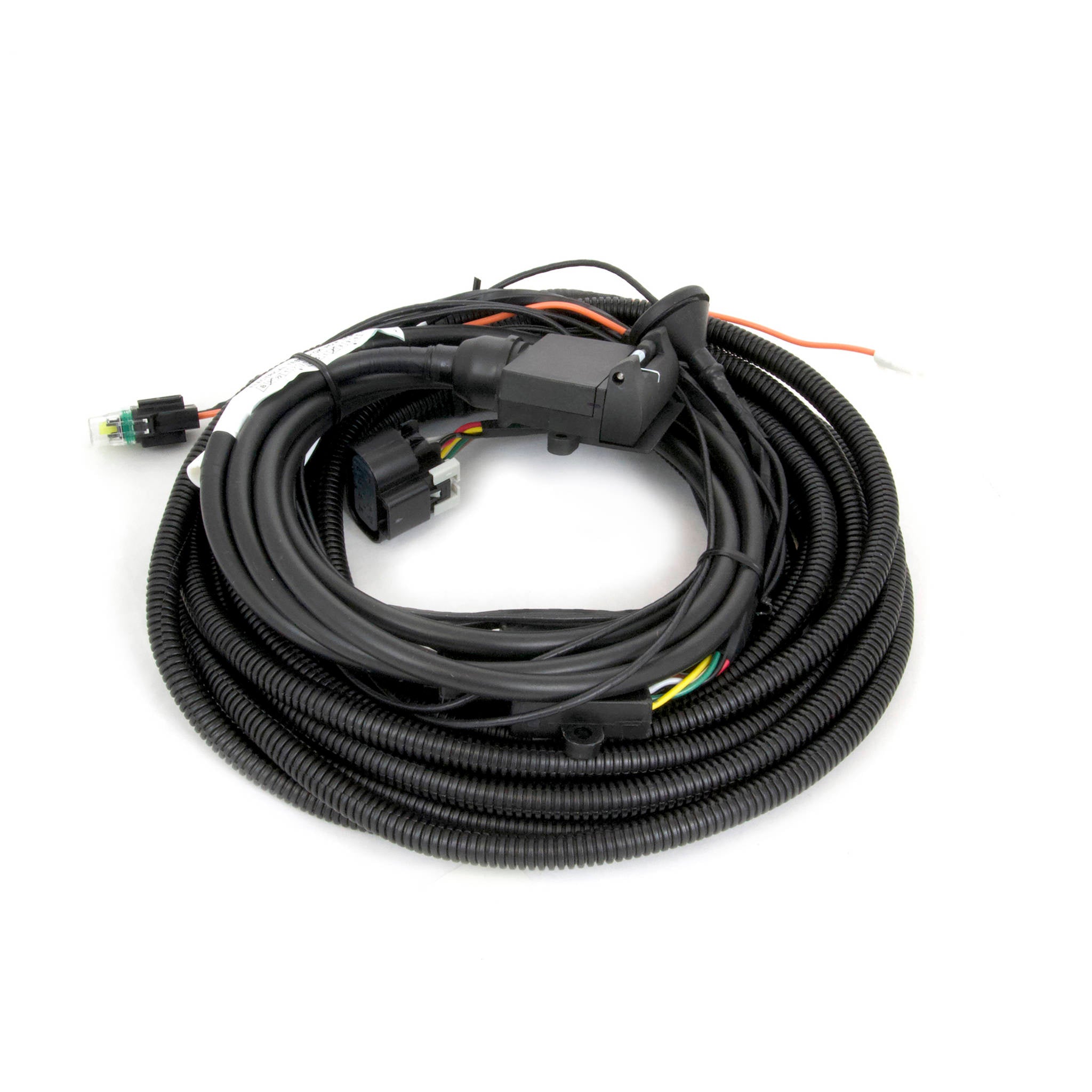

TAG Direct Fit Wiring Harness

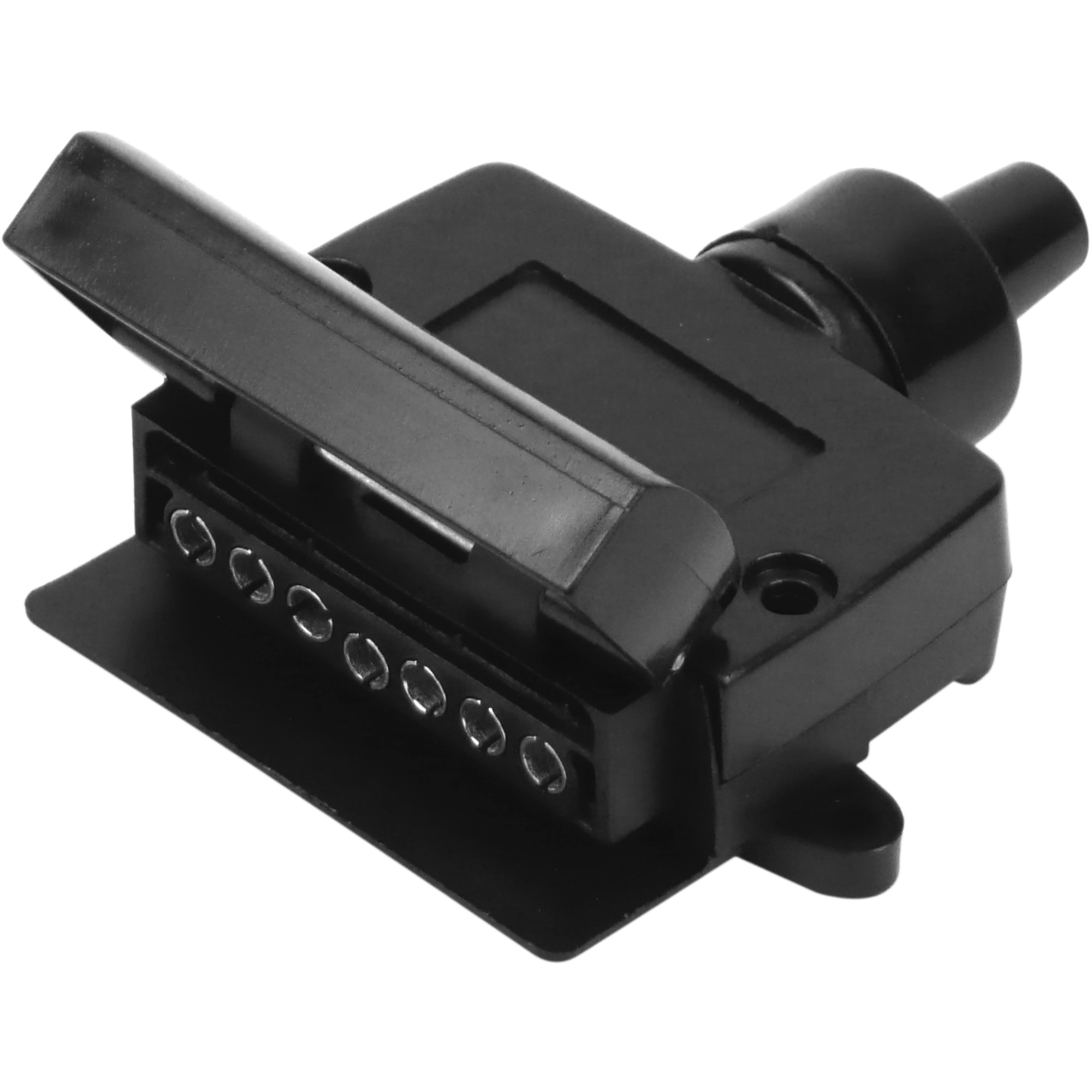

TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
Extreme Duty Reinforced Crossbar
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Textured Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Spacers included with Towbar to suit 2024 model
Wiring Harness:
The Plug-n-Play design is bench tested and rated to ADR standards, providing a safe and seamless integration without adversely affecting modern vehicle safety features and electrical systems.
No special tools or soldering required.
Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).
Does not interfere with brake lights, turning signals and live wire connection.
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towing Capacity [kg]: 3000
- Ball Weight [kg]: 300
- Recovery Load-tested: 4000
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045TXR
- Coating: Powder Coated
- Remove Bumper: Yes
- Bumper Cut Out Required: No
- Exposure: Partially concealed
- Fitting Time Approx: 60
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- LED Support: yes
- Reverse Sensor Cut Off: Automatic
- Wiring Option: Direct Fit ECU
LDV T60 (07/2017 - 02/2024)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
LDV | T60 | 07/2022 | 02/2024 | Ute | SK8C | 0.0L | Electric | RWD | |
LDV | T60 | 09/2021 | 02/2024 | Ute | SK8C | SC20M218Q5 | 2.0L | Diesel | DTT | AWD |
LDV | T60 | 01/2020 | 02/2024 | Ute | SK8C | SC20M163Q5 | 2.0L | Diesel | AWD | |
LDV | T60 | 01/2020 | 02/2024 | Ute | D20 | 2.0L | Diesel | TRAILRIDER 2 | Automatic/Manual 4WD | |
LDV | T60 | 10/2017 | 02/2024 | Ute | SC28R150Q5 | 2.8L | Diesel | LUXE, PRO, TRAILRIDER, | Automatic/Manual 4WD | |
LDV | T60 | 07/2017 | 02/2024 | Ute | SK8C | SC28R150Q5 | 2.8L | Diesel | AWD |
