TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)
TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)
TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)
Load image into Gallery viewer, TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)
Load image into Gallery viewer, TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)
Load image into Gallery viewer, TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)

TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)

Regular price
$1,232.68
Sale price
$1,232.68
Regular price
Sold out
Unit price
per

Tax included. Shipping calculated at checkout.

This Kit Includes:

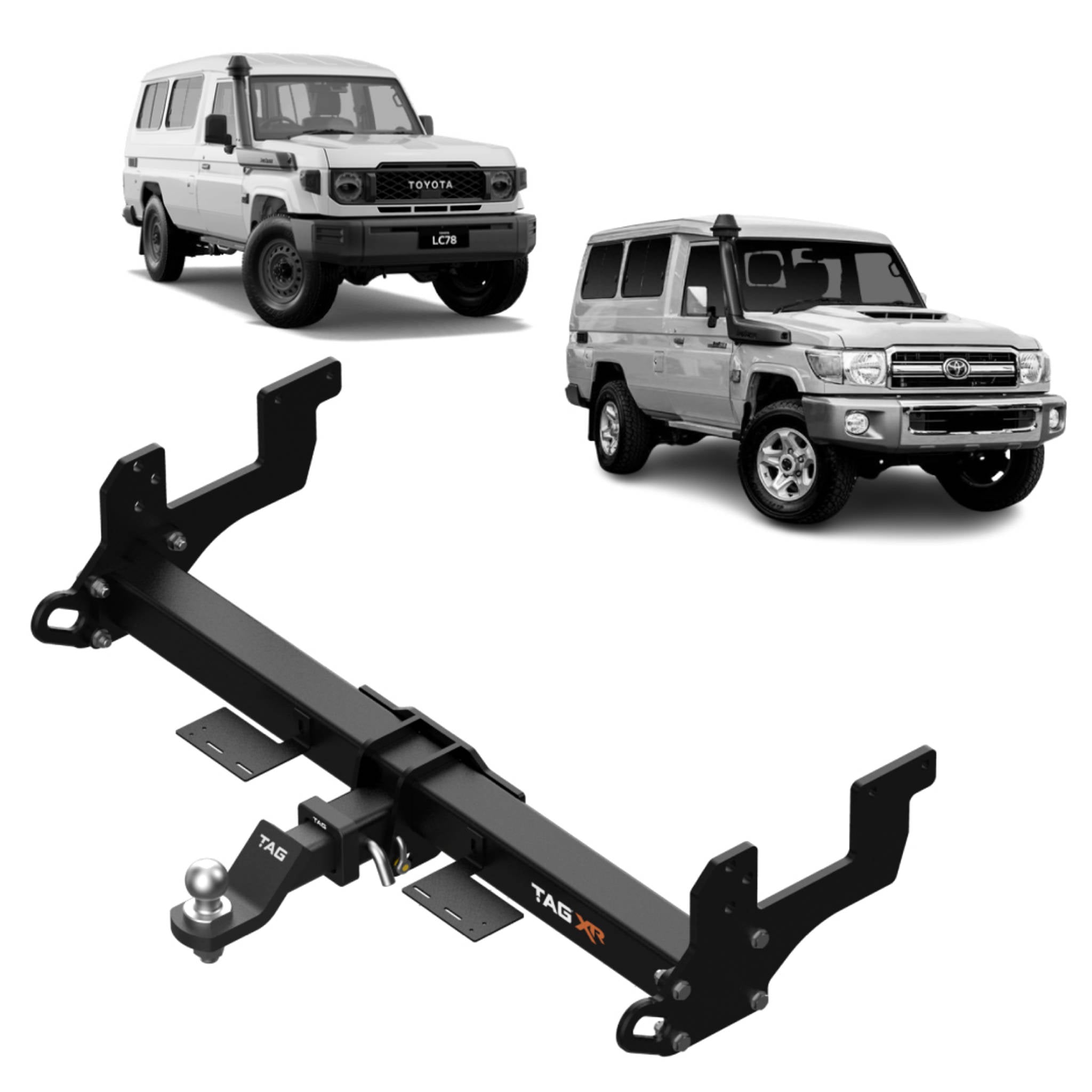

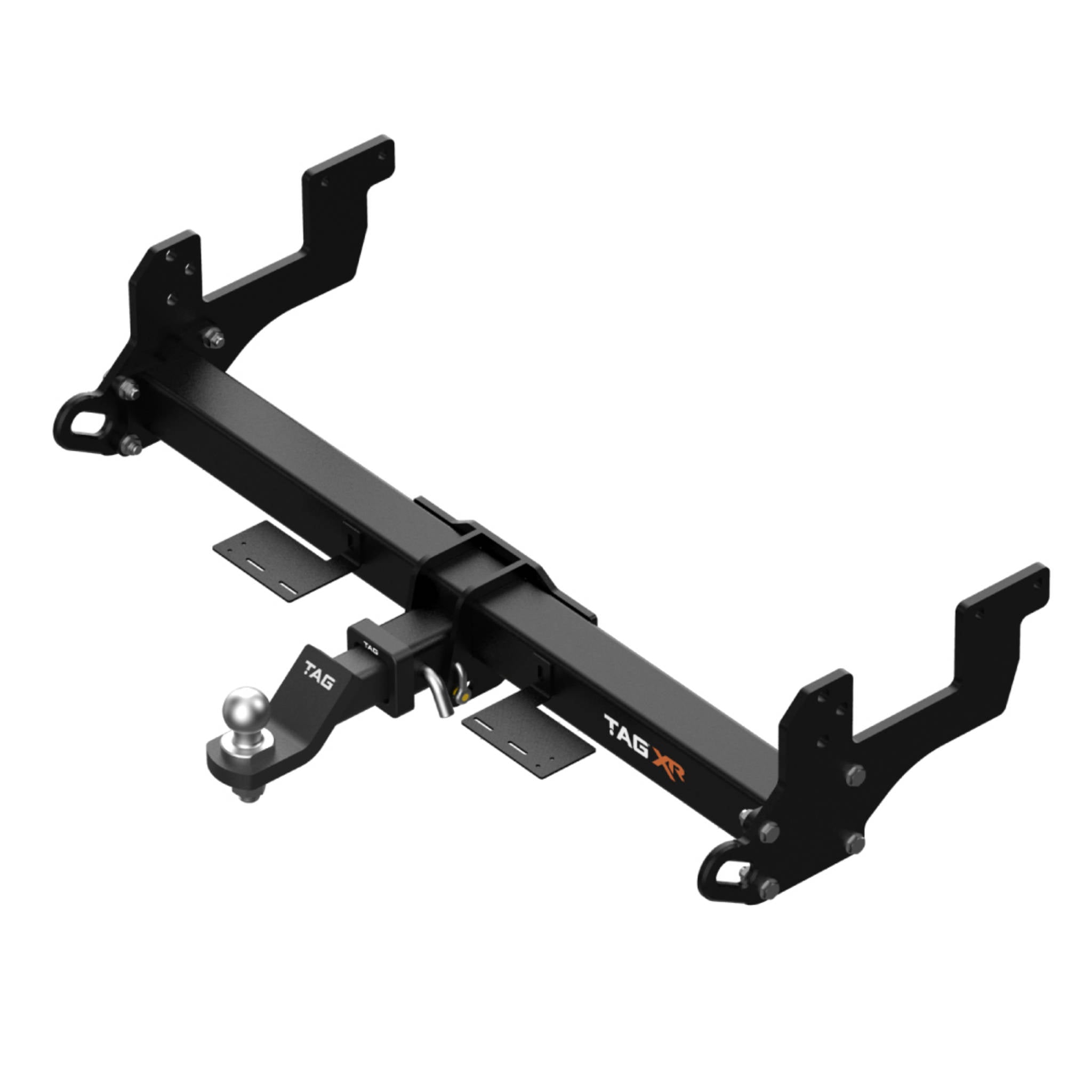

  • Extreme Recovery Towbar

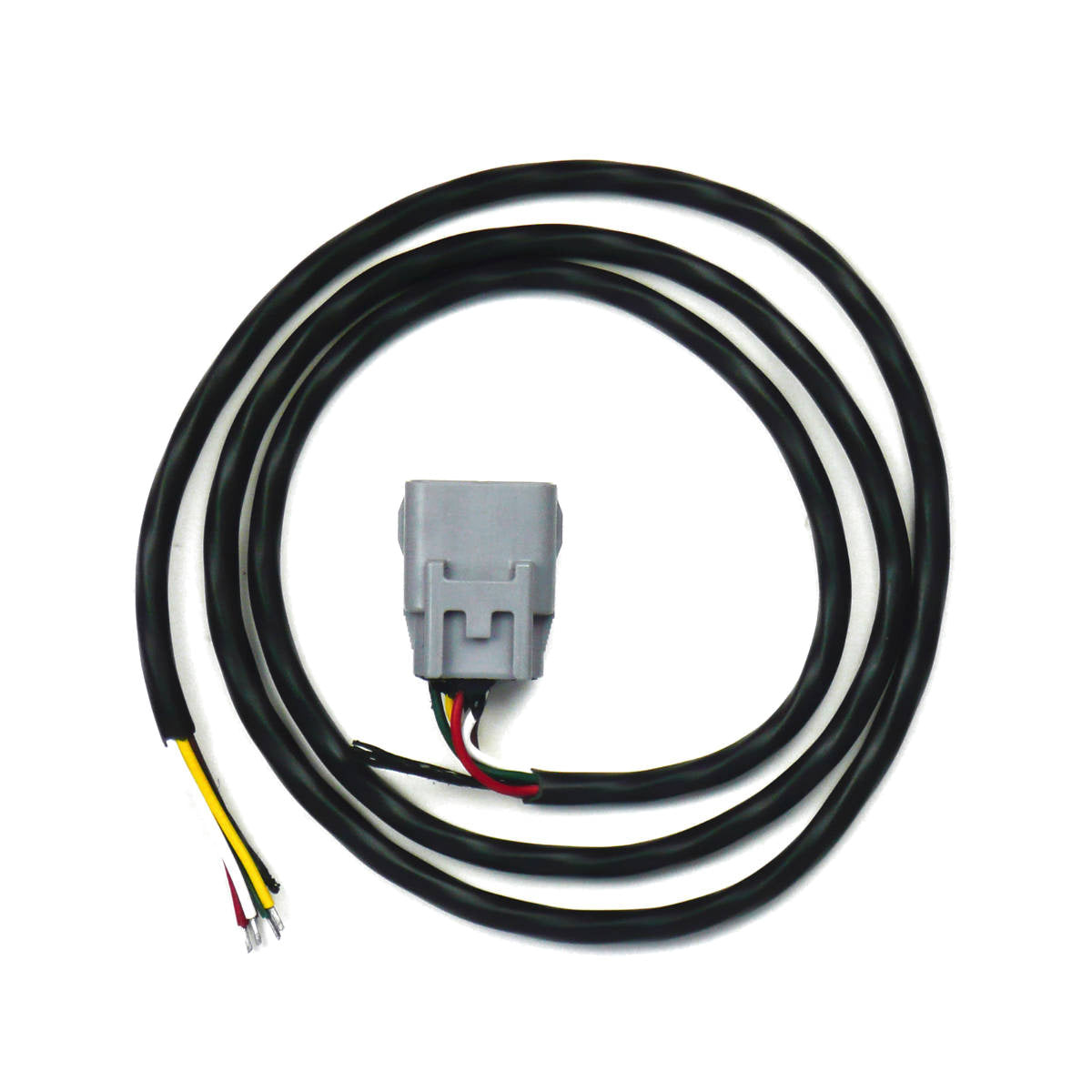

  • Direct Fit Wiring Harness

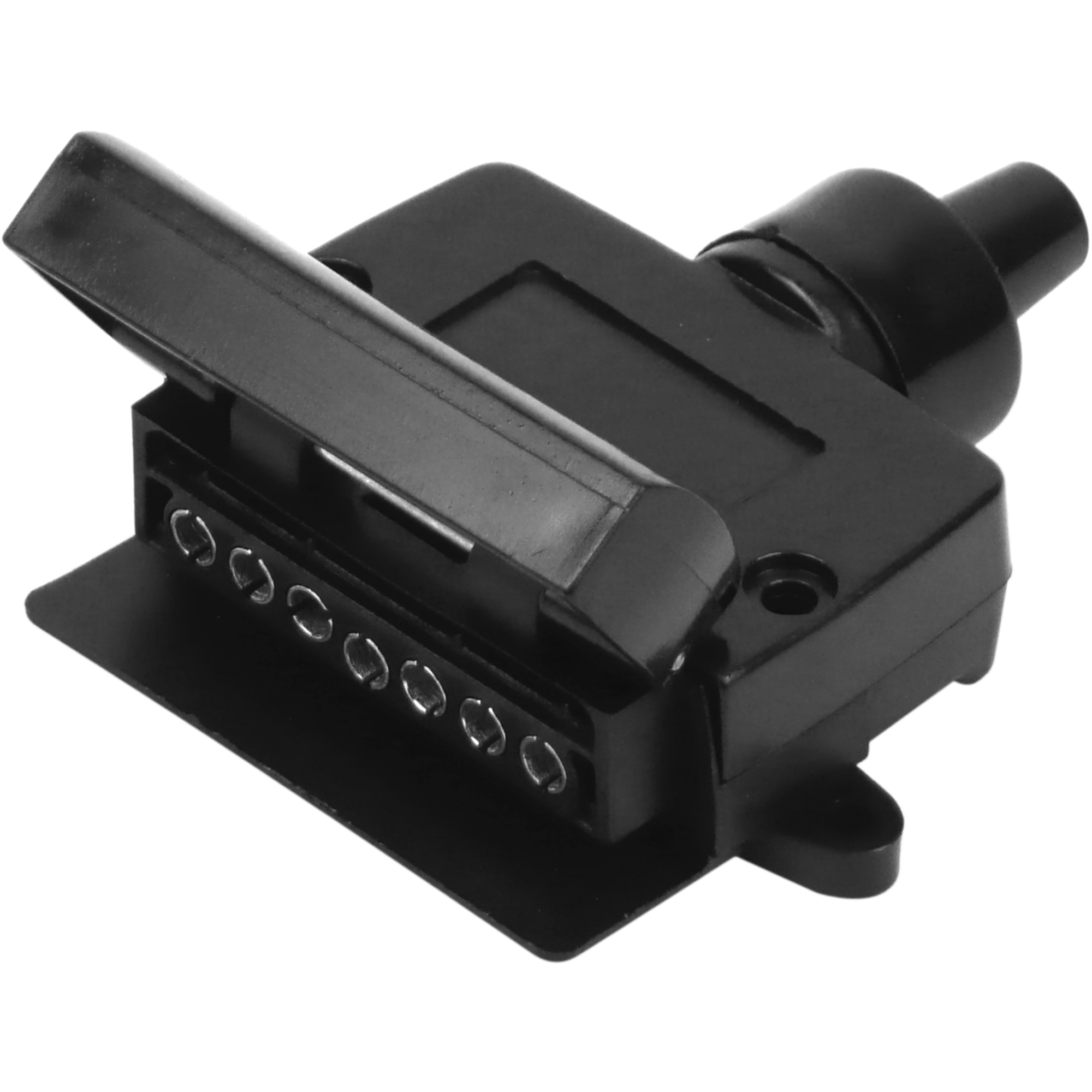

  • 7 Pin Flat Socket (Vehicles Side)

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Textured Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

Specifications
  • Diagnostic Coding: Not Required
  • Fog Cut Off: Not Applicable
  • Reverse Sensor Cut Off: Not Applicable
  • Wiring Option: Direct Fit Wiring Harness
  • Fitting Time [min.]: 30 (UNT272)
  • Fitting Time [min.]: 90 (TXR862)
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Ball Weight [kg]: 350
  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Exposure: Partially concealed
Toyota Landcruiser (01/1991 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 03/1991 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R Manual 4WD
TOYOTA LANDCRUISER 03/1991 08/2016 Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
TOYOTA LANDCRUISER 01/1991 01/2007 Troop Carrier HZJ70RV, HZJ73, HZJ75RV, HZJ78R 1H-Z | 4.2L | Diesel D 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1FZ-FE | 4.5L | Petrol FZJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
