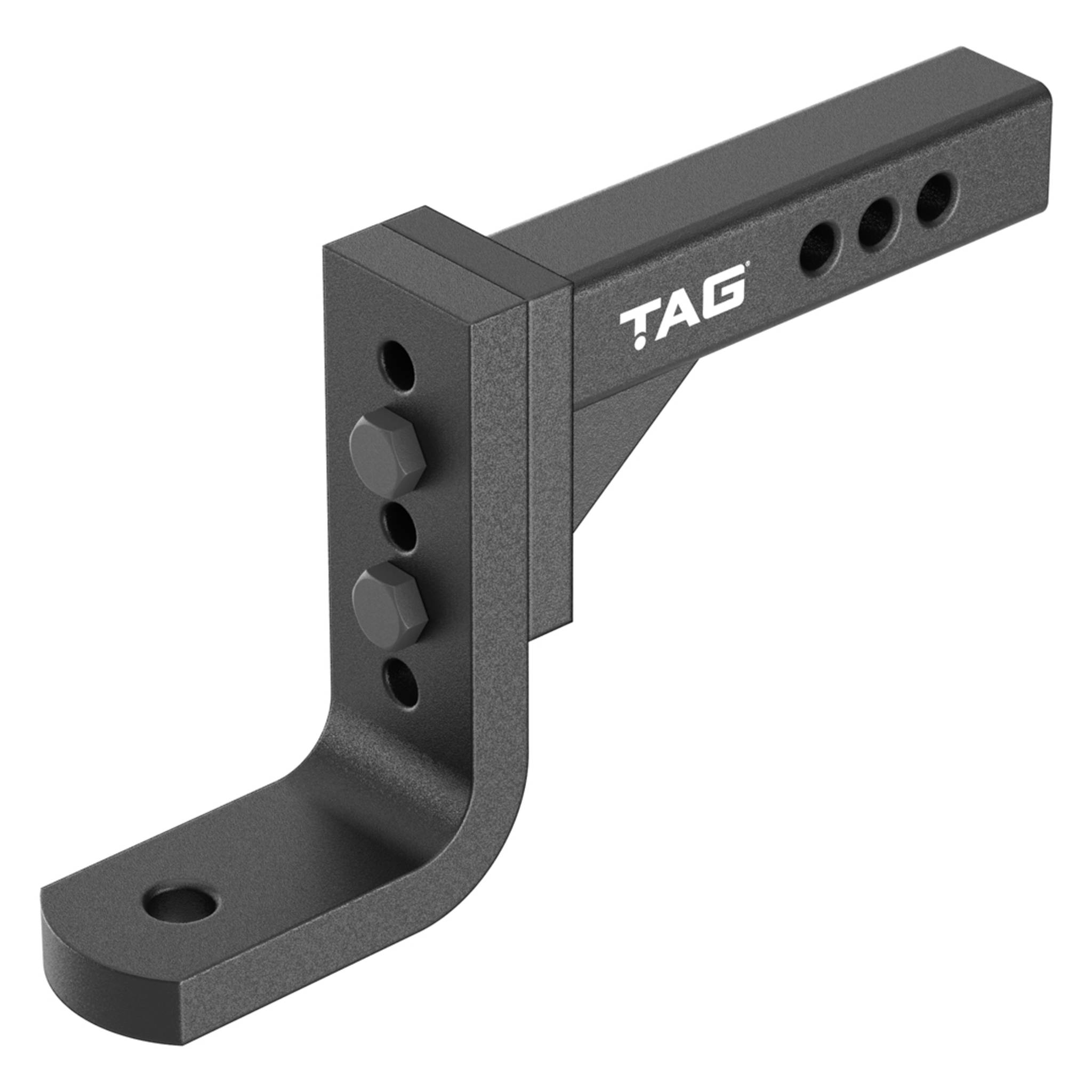

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.
Torque required for Bolts 270Nm
297mm Long (Centre Pin Hole to Tow Ball Hole)
90° Tongue Face
Drop: From 100.5 to 160.5
Can be mounted in Drop Mode or Rise Mode
3500kg Gross Trailer Weight
350kg Ball Weight
Durable Powder-Coated Finish
ADR 62/02 Compliant
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.

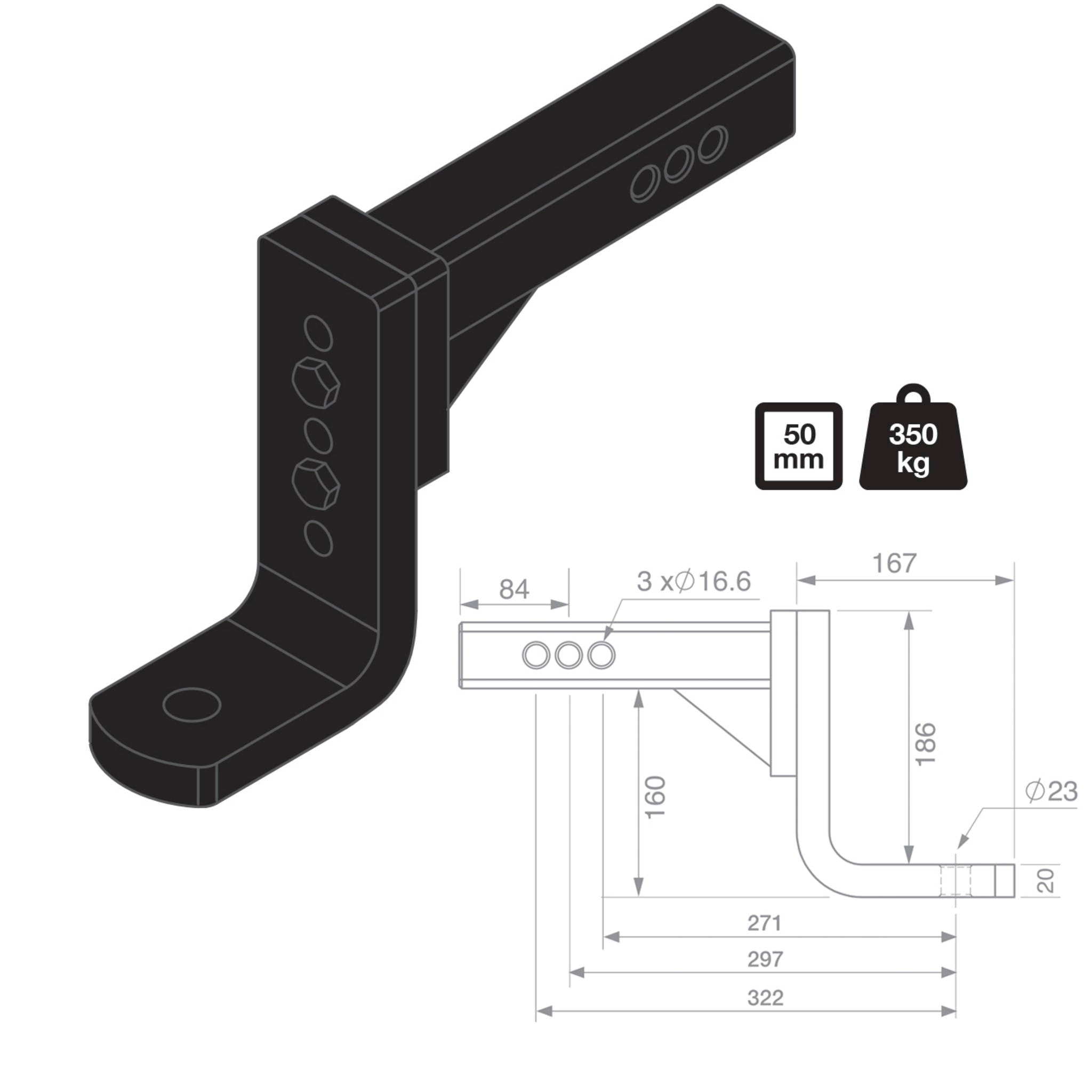

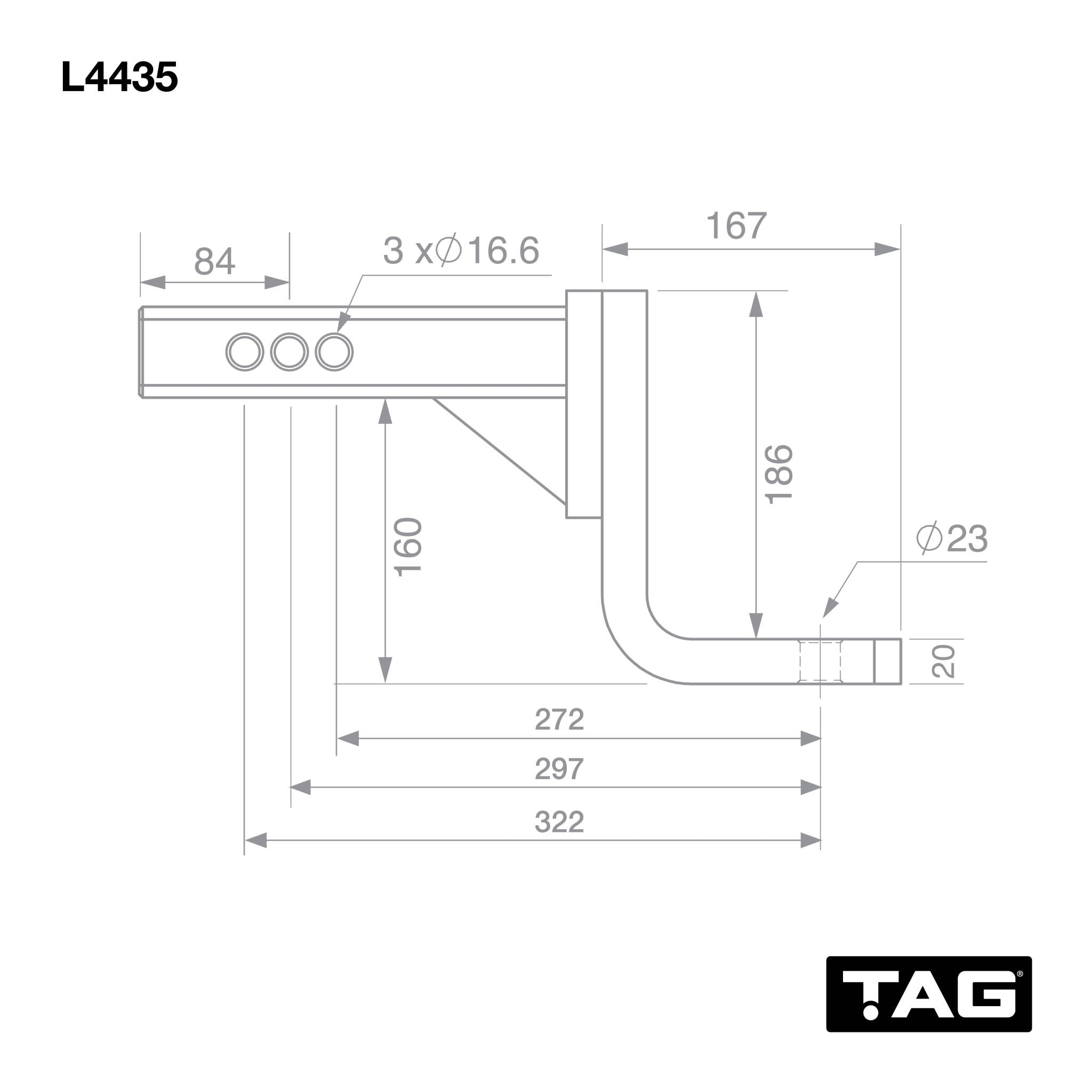

Specifications
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Ball Weight [kg]: 350
- Hitch Type: Heavy Duty 50mm Square
- Drop: 100.5 - 160.5
- Length (Pin To Ball): 297mm
- Front to Pin (mm): 350
- Back to Pin (mm): 76
- Tongue Face: 90°
- Coating:
- Tightening Torque [Nm]: 270
