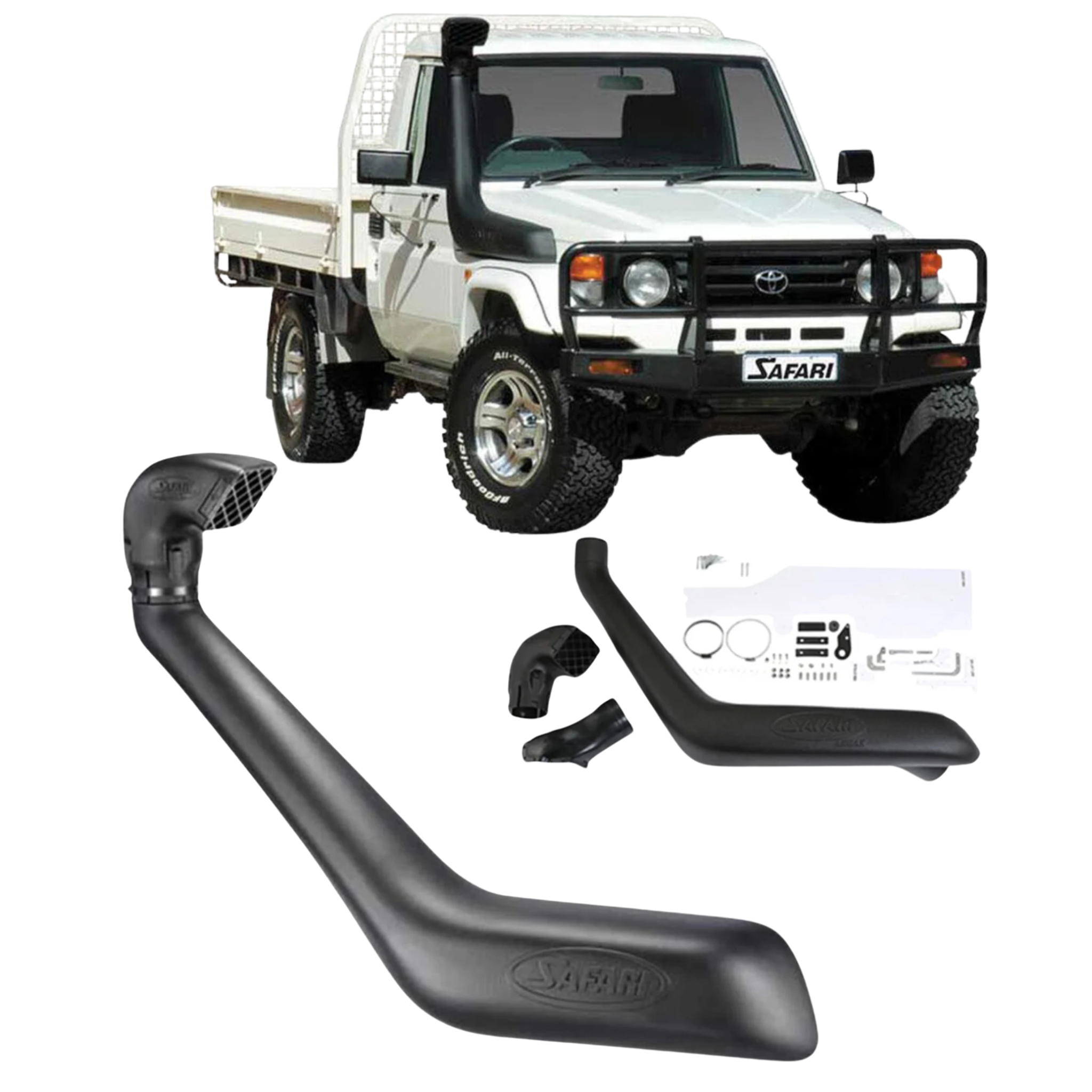

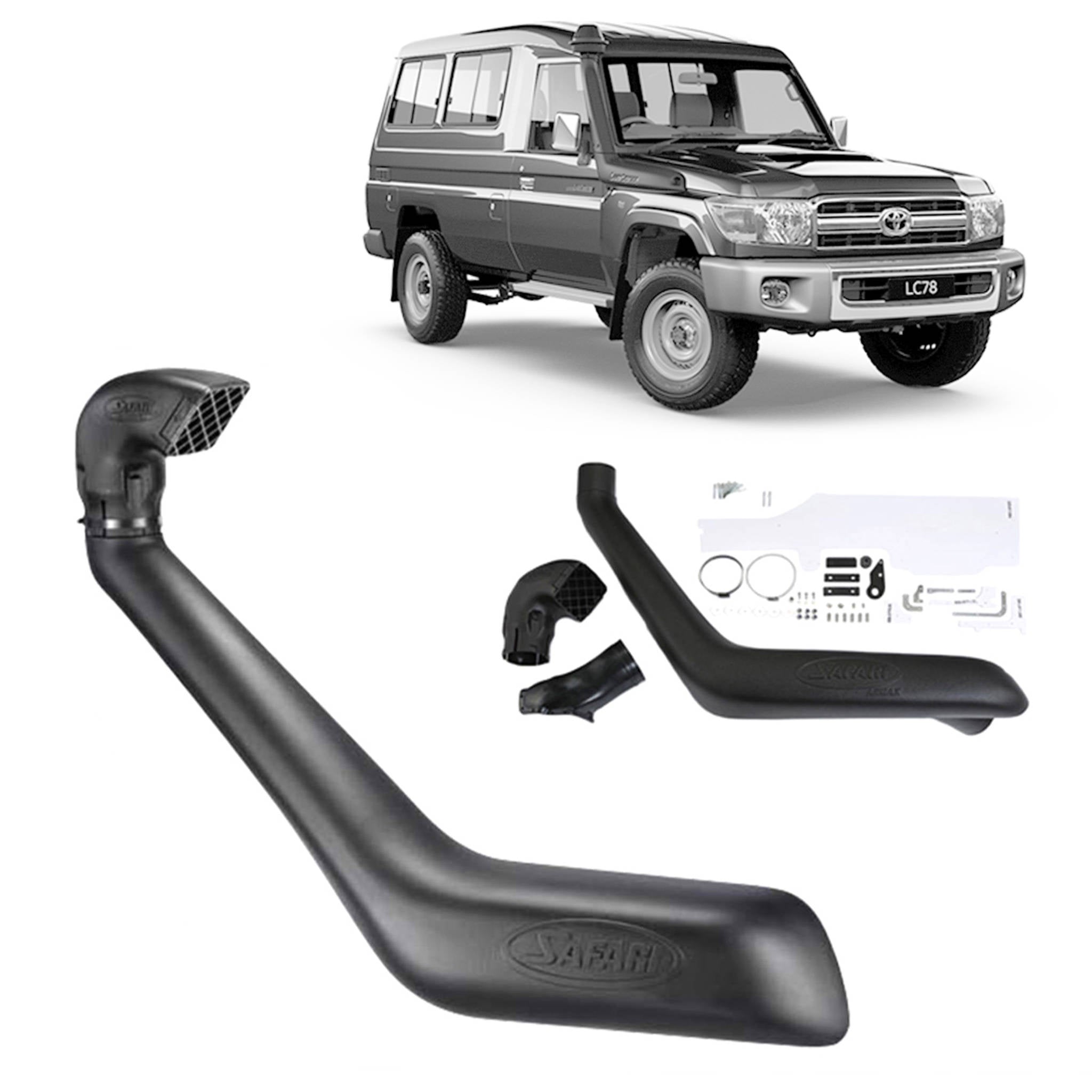

Toyota Landcruiser 70 Series (01/1990 - 10/2007) Safari Snorkel ARMAX

Load image into Gallery viewer, Toyota Landcruiser 70 Series (01/1990 - 10/2007) Safari Snorkel ARMAX

Toyota Landcruiser 70 Series (01/1990 - 10/2007) Safari Snorkel ARMAX

Regular price: $629.00
Sale price: $629.00
Regular price
Unit price: per

Tax included. Shipping calculated at checkout.

Quantity must be 1 or more

Safari Snorkel to suit Toyota Landcruiser The Safari ARMAX™ Snorkels feature:-Replaces factory snorkel with an ARMAX high flow snorkel. Suits 71, 73, 75, 78 & 79 series Narrow Front Landcruiser 01/1985 - 03/2007 4.2L Diesel 1HZ, 1HD-FTE

Safari’s own Industrial Spec UV Stabilised Polyethylene
Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
A Life Time warranty
Design and flow tested by our in house engineers for maximum performance
Development and verification in conjunction with other soon to be released ARMAX™ performance enhancement products.

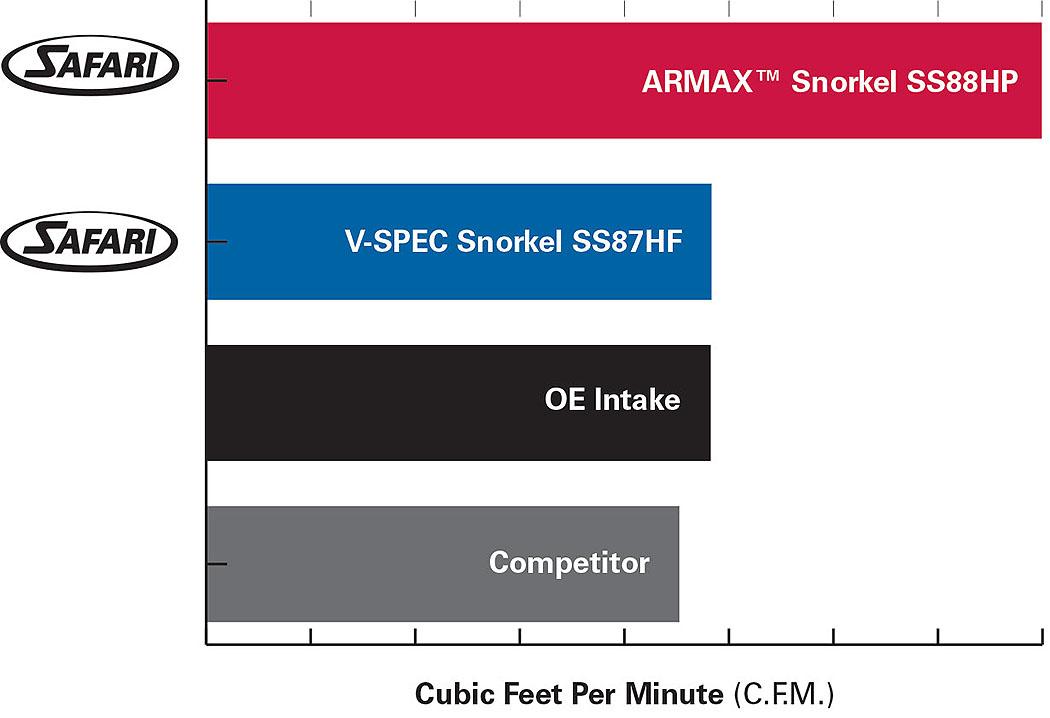

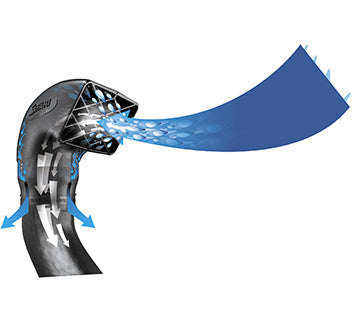

These snorkels are all new designs, tested on a custom built flow bench, to flow 25% to 70% more air than the stock air cleaner housing flows from the vehicle manufacturer, whilst still providing a watertight raised air intake.The Air Ram is designed to remove the maximum volume of water from the incoming air stream, while delivering the maximum airflow to your vehicle’s engine.By rotating the air ram to face away from the prevailing wind/direction of motion, the air ram delivers additional protection from the elements.

Safari Snorkel Kit - ARMAX. 70 Series with factory snorkel (narrow nose). Only fits 1HZ / 1HD-FTE engines.

Specifications

Fitting Time Approx: 3 hr
Style: ARMAX
Fitment Side: Drivers Side
Material Type: UV Stabilised Polyethylene

Toyota Landcruiser (01/1990 - 10/2007)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	LANDCRUISER	11/2001	06/2007	Single Cab	79 Series	1HD-FTE \| 4.2L \| Diesel	HDJ79R	Manual 4WD
TOYOTA	LANDCRUISER	11/2001	06/2007	Single Cab	79 Series	1HD-FTE \| 4.2L \| Diesel	HDJ79R	Manual 4WD
TOYOTA	LANDCRUISER	11/2001	02/2007	Troop Carrier	78 Series	1HD-FTE \| 4.2L \| Diesel	HDJ78R	Manual 4WD
TOYOTA	LANDCRUISER	11/2001	02/2007	Troop Carrier	78 Series	1HD-FTE \| 4.2L \| Diesel	HDJ78R	Manual 4WD
TOYOTA	LANDCRUISER	08/2001	01/2007	Cab Chassis	HDJ79R	1HD-FT \| 4.2L \| Diesel	TD 24V	AWD
TOYOTA	LANDCRUISER	08/2001	02/2007	Wagon	HDJ78R	1HD-FT \| 4.2L \| Diesel	TD 24V	4WD
TOYOTA	LANDCRUISER	10/1999	10/2007	Single Cab	79 Series	1H-Z \| 4.2L \| Diesel	HZJ79R	Manual 4WD
TOYOTA	LANDCRUISER	10/1999	01/2007	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	Manual 4WD
TOYOTA	LANDCRUISER	10/1999	01/2007	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	4WD
TOYOTA	LANDCRUISER	01/1999	01/2007	Single Cab	79 Series	1H-Z \| 4.2L \| Diesel	HZJ79R	AWD
TOYOTA	LANDCRUISER	01/1990	01/2007	Single Cab	HZJ75RP, HZJ79R	1H-Z \| 4.2L \| Diesel	D	AWD
TOYOTA	LANDCRUISER	01/1990	01/2007	Troop Carrier	HZJ70RV, HZJ75RV, HZJ78R	1H-Z \| 4.2L \| Diesel	D	4WD
TOYOTA	LANDCRUISER	10/1999	07/2001	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	Manual 4WD
TOYOTA	LANDCRUISER	03/1990	11/1999	Hardtop	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	4WD
TOYOTA	LANDCRUISER	03/1990	08/1999	Hardtop	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	Manual 4WD
TOYOTA	LANDCRUISER	03/1990	11/1999	Ute	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	4WD
TOYOTA	LANDCRUISER	03/1990	08/1999	Ute	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	Manual 4WD
TOYOTA	LANDCRUISER	01/1990	08/1999	Hardtop	73 Series	1H-Z \| 4.2L \| Diesel	HZJ73R	Manual 4WD
TOYOTA	LANDCRUISER	03/1991	09/1992	Hardtop	70 Series	1H-Z \| 4.2L \| Diesel	HZJ70R	Manual 4WD

Download Instructions for (SS70HP)
