iChecktpms Airbag Pressure Sensors (SKU: ICAB)

iCheckTPMS Airbag Pressure Sensors ICAB.

Key Features

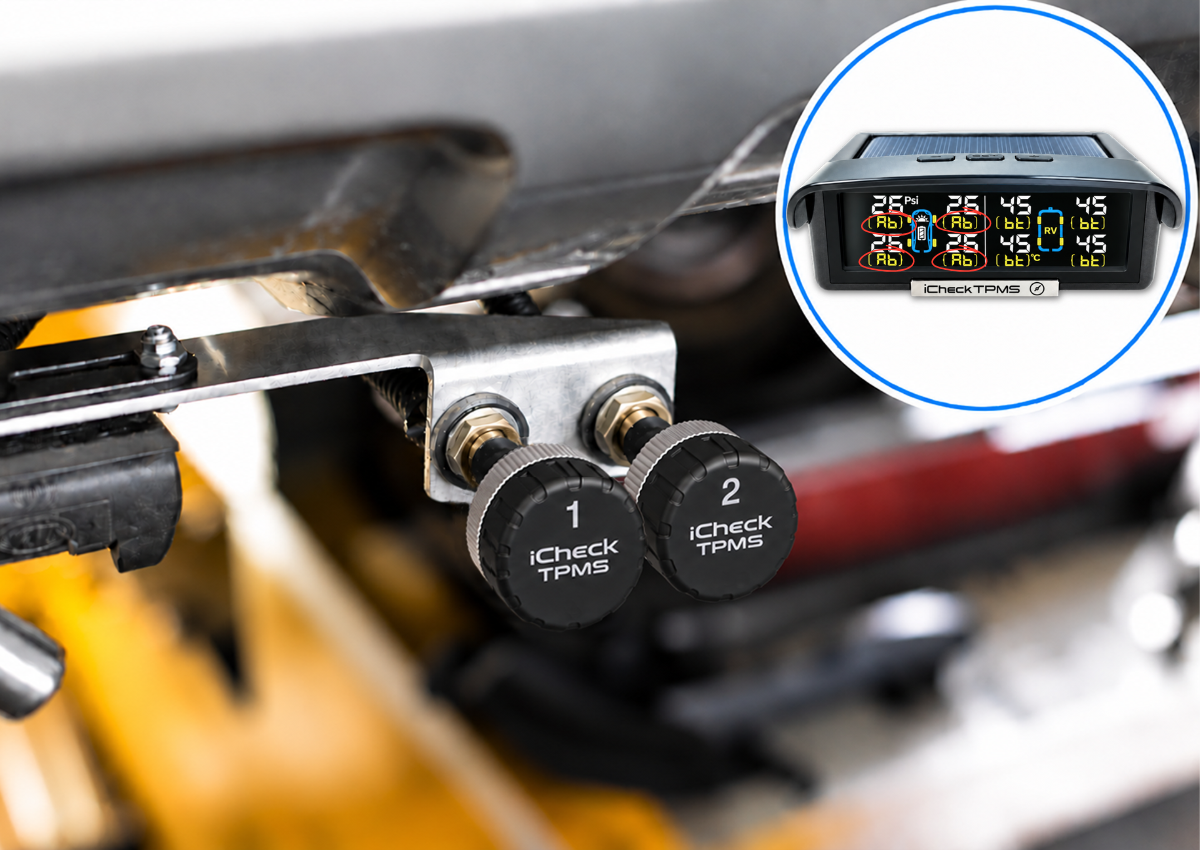

• Live Airbag Pressure Monitoring – View your airbag suspension pressure in PSI directly on the iCheckTPMS monitor.
• Monitor Up to 4 Airbags – Supports up to 4 Airbag (AB) Sensors within the iCheckTPMS system.

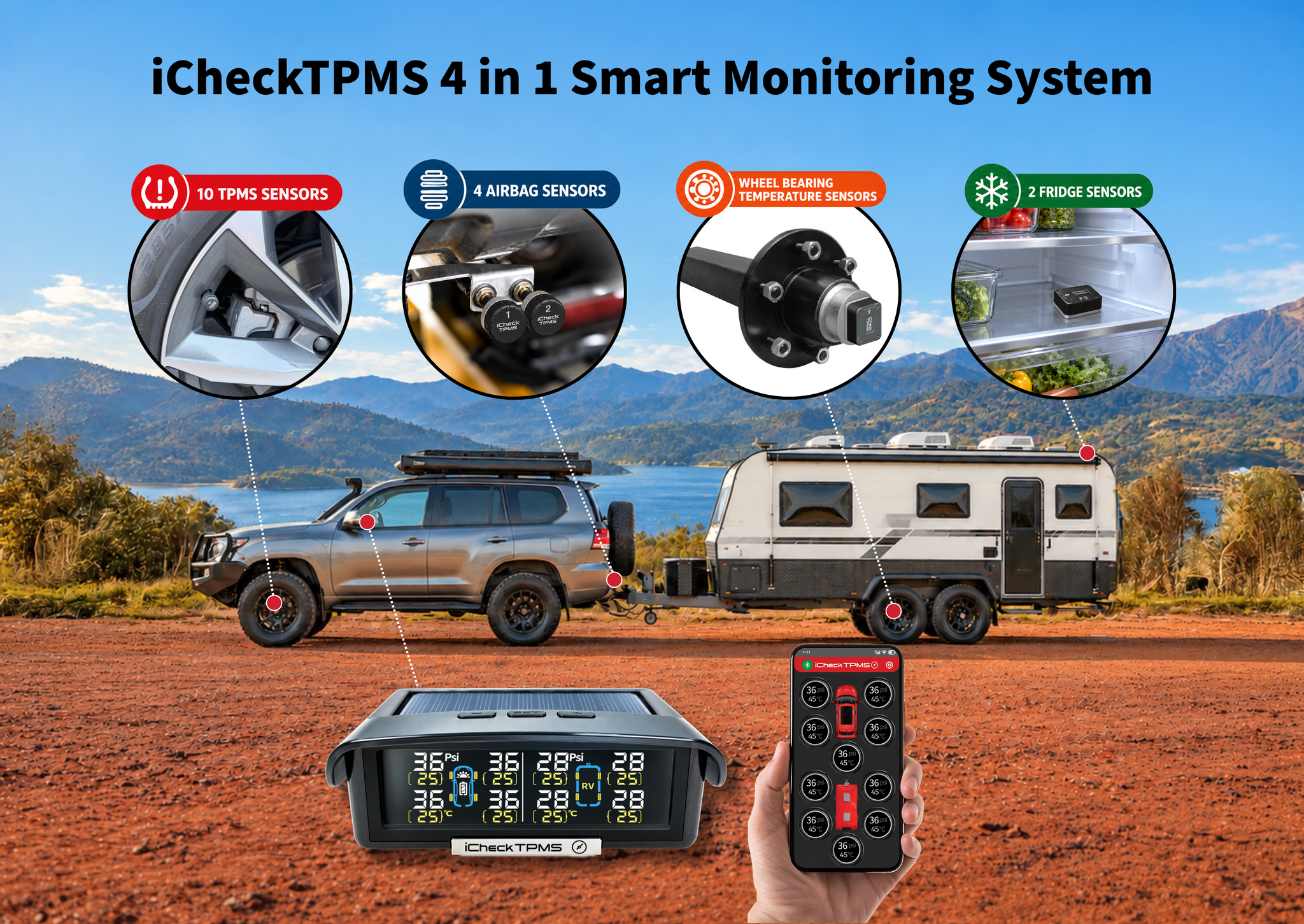

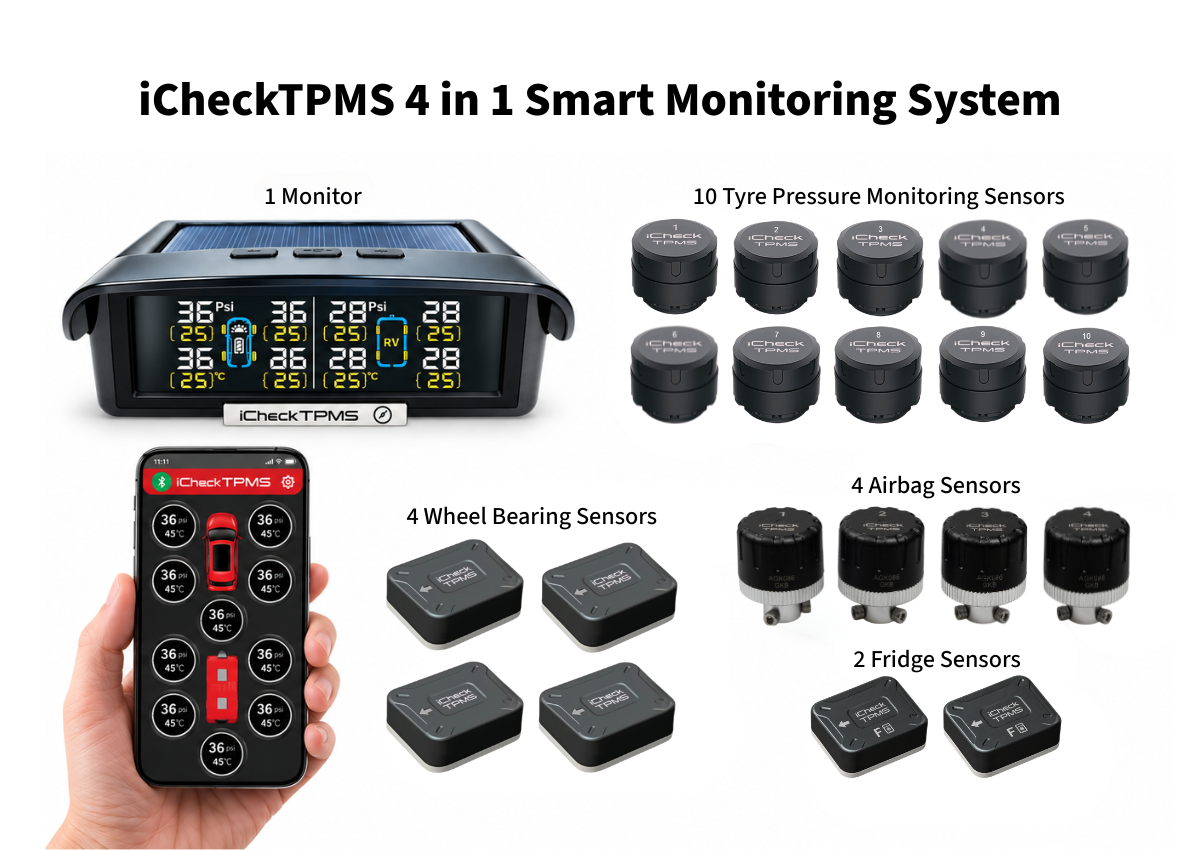

• Integrated With iCheckTPMS – Airbag pressure information is displayed through the same smart monitoring system.
• Easy Pairing – Pair each AB Sensor through the iCheckTPMS system and assign it to the desired airbag position.

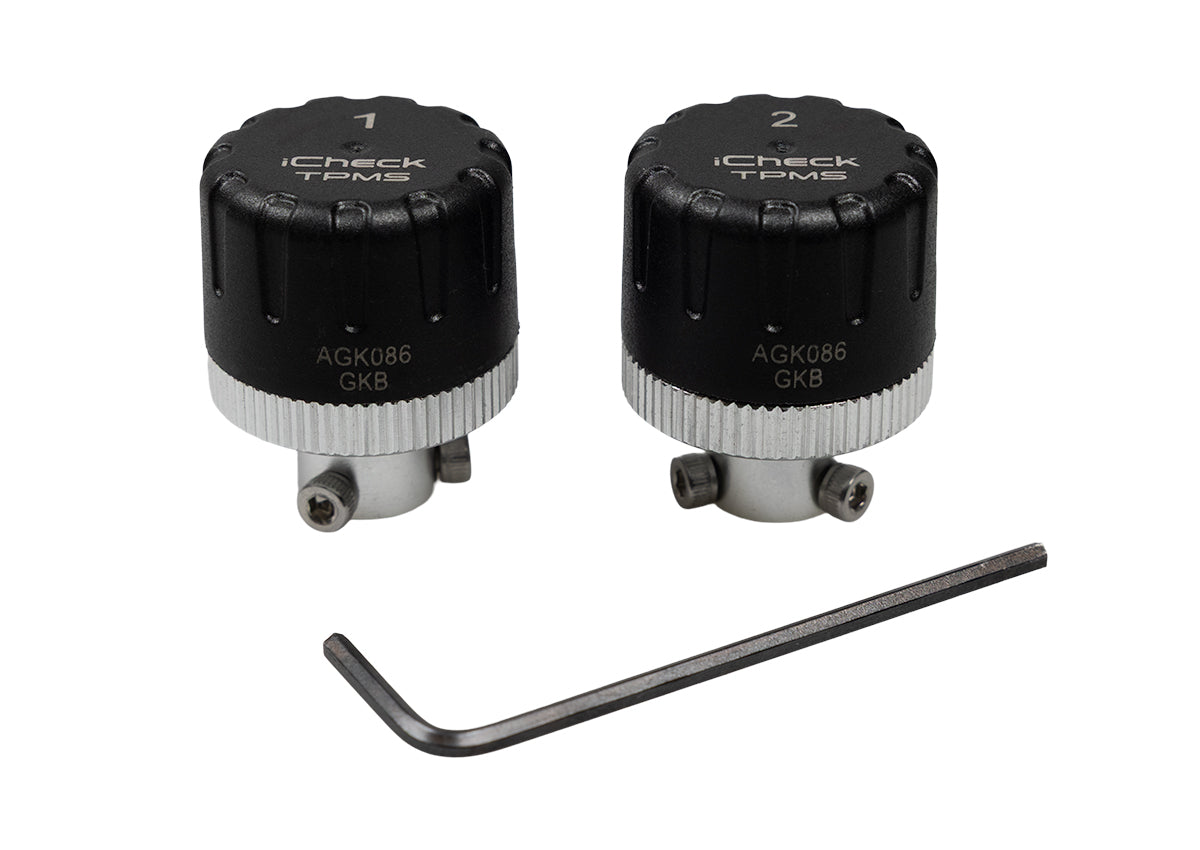

• Secure Installation – Supplied with a locking screw and Allen key to help reduce the risk of sensor theft.
• High-Pressure Capability – Working pressure range of 0–188 PSI (0–13 BAR).
• Long Battery Life – Expected battery service life of approximately 12–18 months, with replacement recommended every 12 months.

Specification

• Working Pressure – 0~188PSI (0~13 BAR)
• Working Temperature – -40℃~80℃
• Storage Temperature – -40℃~85℃
• Frequency – 433.92MHz
• Transmission Power – <10dBm
• Pressure Accuracy – ±1.5PSI (±0.1BAR)
• Temperature Accuracy – ±3℃
• Dimension – 24.5(dia.) x 30(H)mm
• Weight – 15.4g

Warranty: 15 Months from date of purchase.
