Ford Ranger (2007-2011) PJ PK Brown Davis 100lt Fuel Tray Tank

Brown Davis 100lt Fuel Tray Tank TTF1

Brown Davis TTF1 100L Tray Tank – 230mm Depth Long Range Fuel Tank

The Brown Davis TTF1 Tray Tank is a practical and heavy-duty solution for increasing fuel capacity without sacrificing tray space. Designed for both touring and work applications, it eliminates the need for loose jerry cans while providing a safe, reliable fuel storage option.

Key Specifications

• Model: TTF1
• Tank Type: Tray-mounted auxiliary tank
• Capacity: 100 Litres
• Depth: 230mm
• Filler Location: Top of tank
• Fuel Supply: Gravity feed system

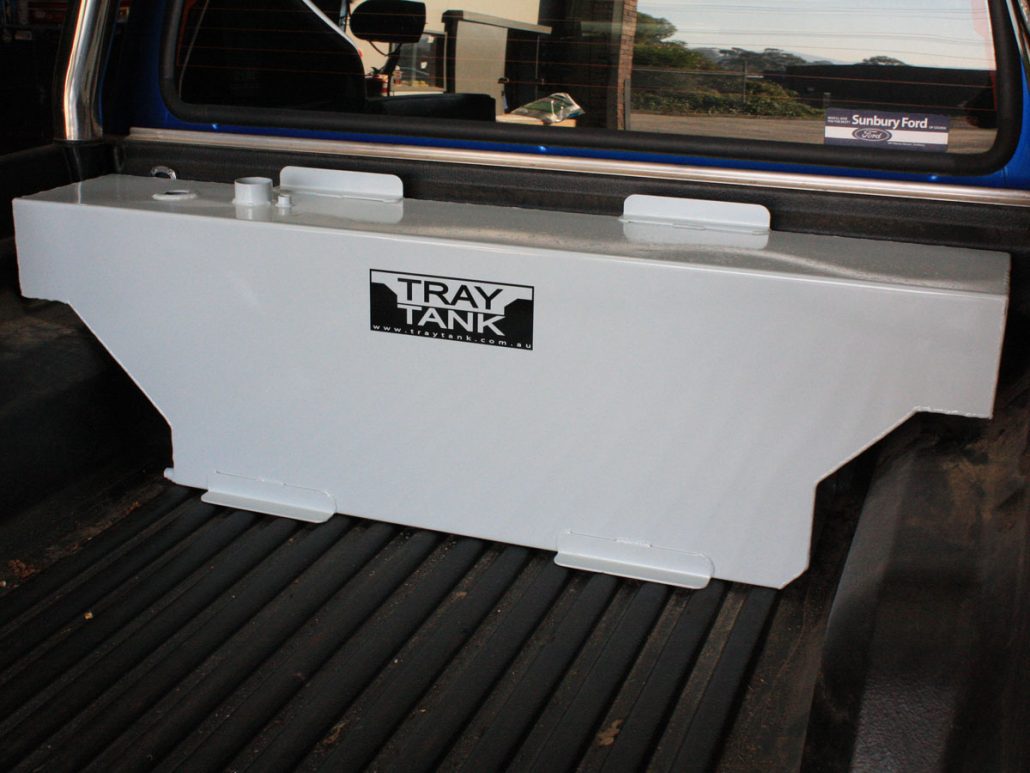

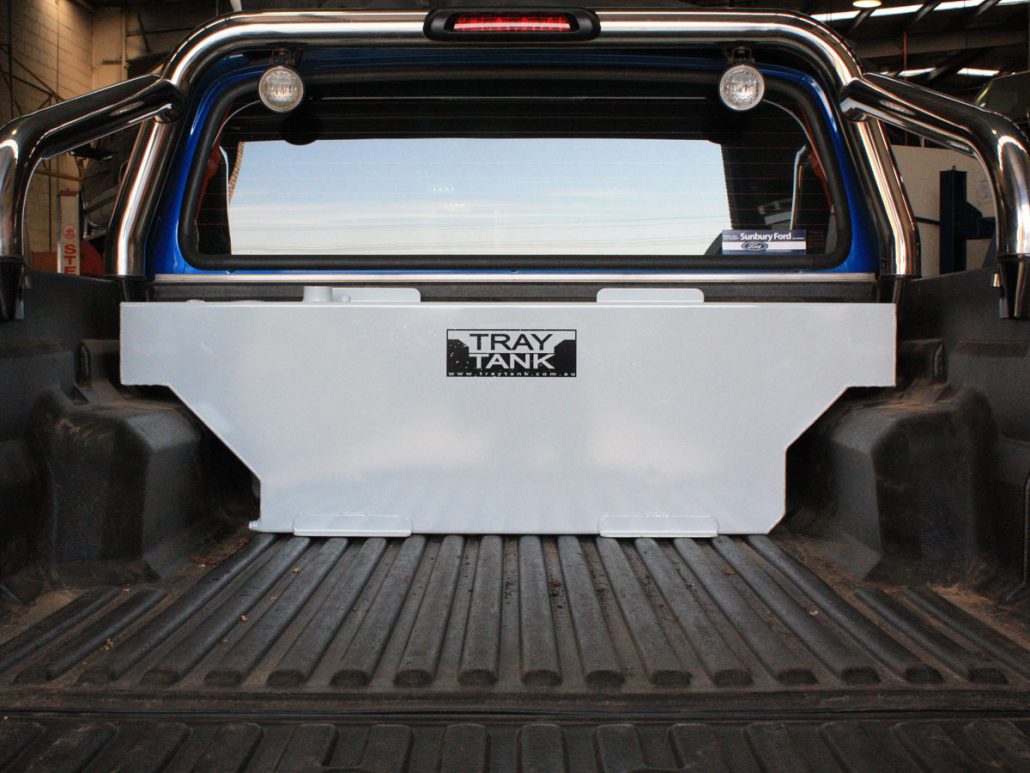

• Mounting Position: In tray, directly behind the cabin
• Estimated Fitment Time: Approx. 3 hours

Product Features

Built from tough aluminised steel, the TTF1 is engineered to handle harsh conditions while maintaining a low-profile, functional design.

• Increased Driving Range
  Carry additional fuel safely without relying on jerry cans
• Durable Construction
  Manufactured from aluminised steel for strength and corrosion resistance
• Low Profile Design
  Tapered front edge improves ramp-over clearance and reduces impact risk
• Internal Fuel Baffling
  Reduces fuel movement and enhances structural integrity
• Swirl Pot System
  Maintains consistent fuel pickup in uneven terrain
• Protected Fuel Lines
  Cushion clamps help prevent vibration damage and kinking
• OEM Integration
  Designed to reuse the vehicle’s factory fuel sender and connect to the original filler system

Ideal For

Perfect for touring, trade use, or running equipment—this tray tank provides a clean, secure and efficient fuel solution while keeping your tray organised and functional.

Optional - FUEL LEVEL KIT

This kit makes it possible to track the fuel level in the Tray Tank. A sender unit and LED gauge are supplied to give you accurate fuel tracking.

FITMENT NOTE - Note: Brown Davis has done its best to try all Trays Tanks with different tub liners and hard lids but can not be sure it will fit with all brands. The tub liners and hard lids quoted above are OEM.

Stock Updated: 2026-05-01

As demand can change quickly, displayed availability is subject to change. Once your order is placed, our team will confirm your ETA within 48 hours.

Where no arrival date is shown above, or incoming stock has been allocated, the item is available to order with a current lead time of approximately 10–12 weeks.

If stock is unavailable at your nearest location, we can arrange a transfer for your convenience. A flat freight charge of $299 applies.

This is not quoted on checkout and will need to be added on, please contact us to do this.

Perth stock is not kept at Bibra Lake HQ but another offsite warehouse, for pickups tanks are required to be transferred in with a 24-48 hour delay

Please note that our long-range tank range is manufactured to order to ensure the highest level of fitment and quality. As a result, these orders cannot be cancelled once confirmed.

SHIPPING POLICY:

Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout.

We can provide door to door delivery options for an extra fee, Please contact our sales team on (08) 6117 3837 or sales@canyonoffroad.com.au within 24hrs of the order being placed if you would like us to quote this option for you.
