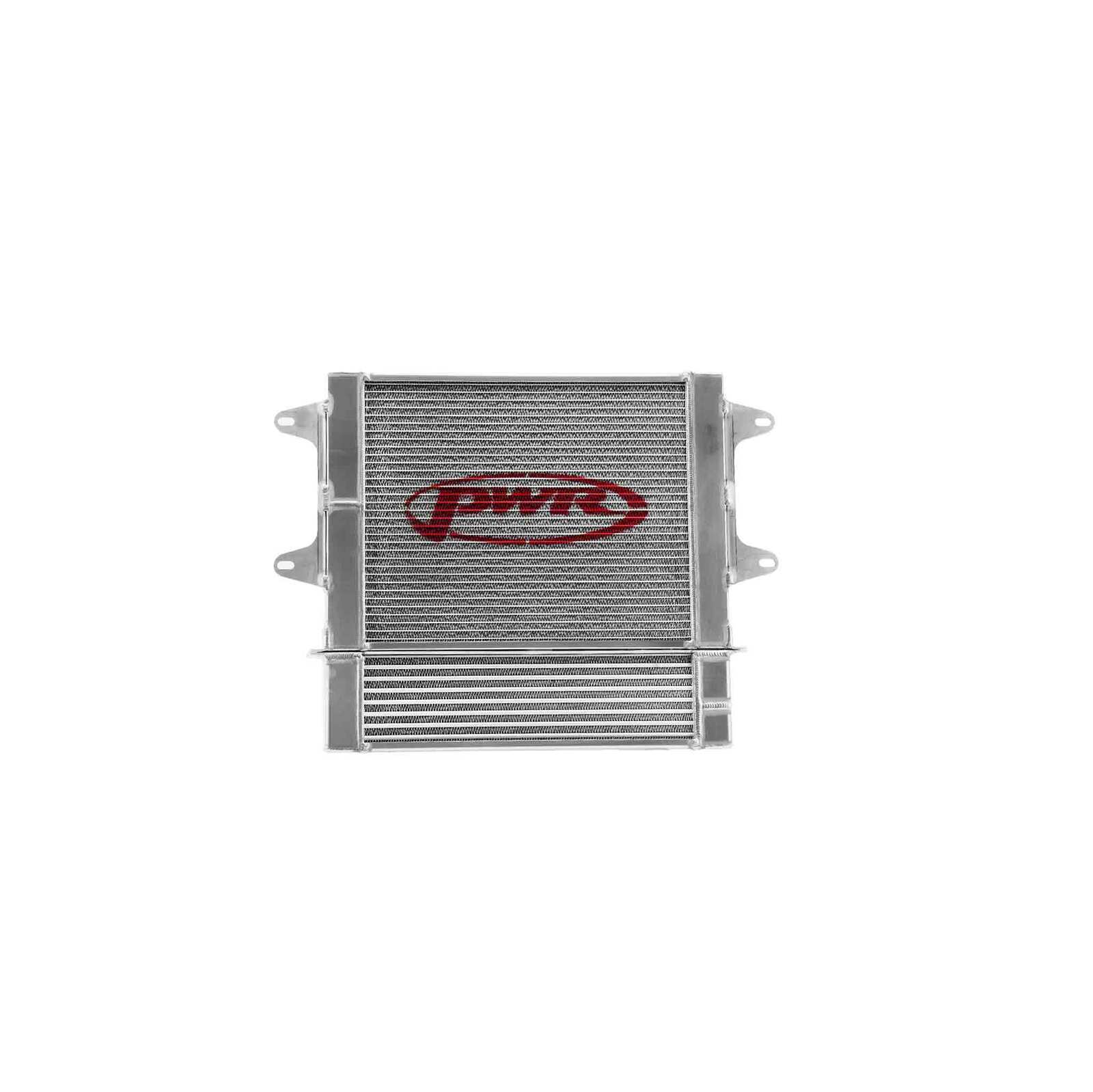

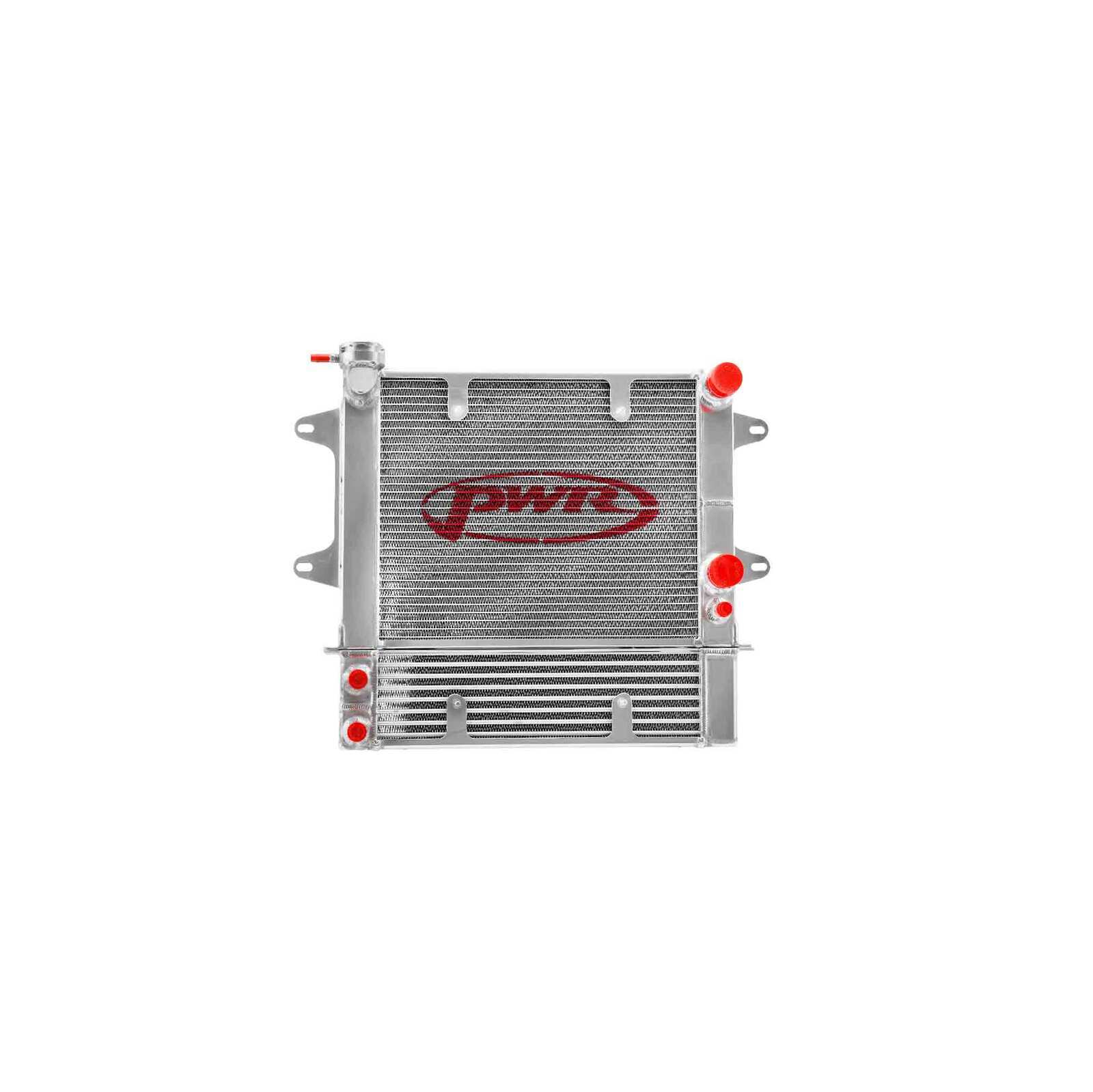

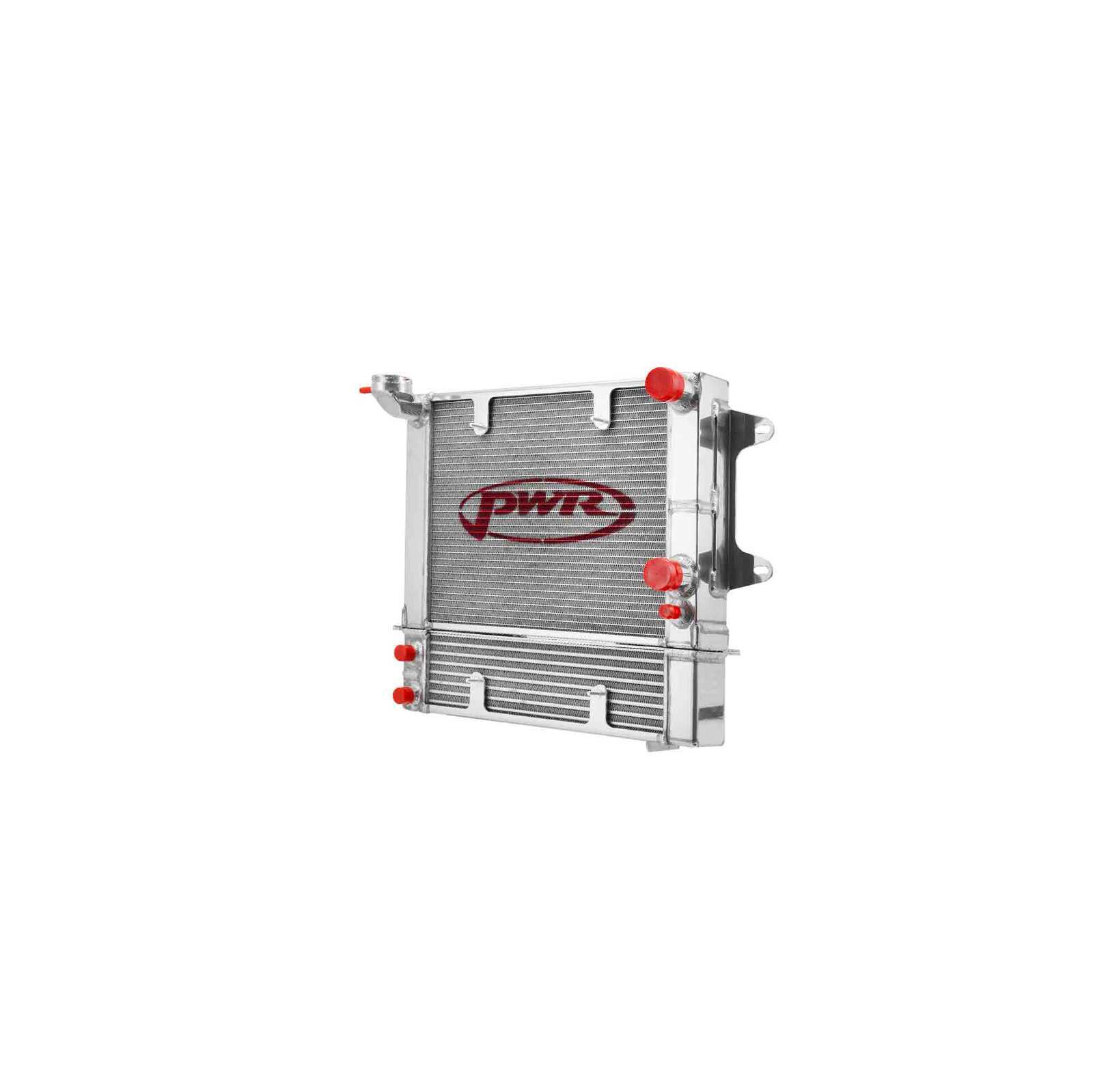

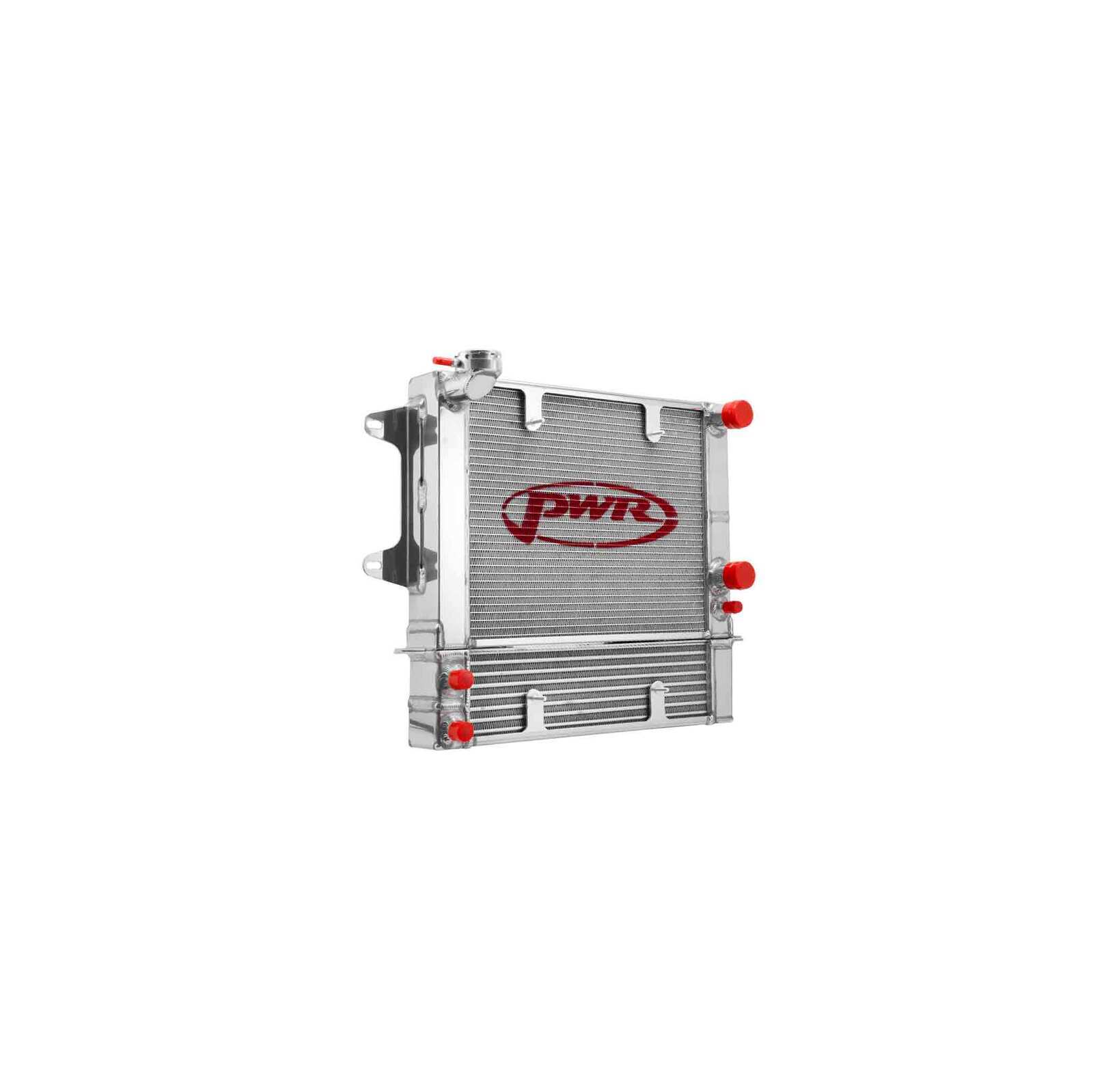

Mazda R100 (1967-1971) 55mm Radiator / Oil Cooler Kit With 16" SPAL Fan Mounts

Mazda R100 (1967-1971) 55mm Radiator / Oil Cooler Kit With 16" SPAL Fan Mounts

PRODUCT DETAILS

• Up to 30% more efficient than Standard OEM using the latest tube & fin technology

• Varied core combinations using 26, 32, 42, 55 & 68mm tubes

• Revolutionary fin pitch from 10-22FPI and louver angles
• World-class TIG welding by our passionate fabricators

• State-of-the-art controlled atmosphere brazing process

• All items CAD designed to meet ISO9001 International standards for repeatability
• Race and street-proven performance backed by comprehensive wind tunnel testing

• Pressure tested and guaranteed
• 1 Year-manufactured warranty
• 100% Australian made

All PWR radiators, including the core are manufactured by hand in our state-of-the-art facilities on the Gold Coast. PWR produce all products from high-grade aluminium incorporating a unique wider dimpled tube configuration and revolutionary louver fin design angle, which maximises the cooling efficiencies and disbursement of heat. With these characteristics, each PWR radiator will deliver the highest levels of quality, consistent durability, strength and performance exceeding the highest levels of customer expectation

SPECIFICATIONS

• Natural Aluminium Finish
• Rolled Dimple Radiator Tube and Fin
• Extruded Oil Tube and Fin
• Not Direct OEM Fitment
• Thermo Fan Sold Separately
• Radiator Cap Sold Separately
• Oil Lines or Kit Not Included

WHAT'S INCLUDED

• 1 x Rolled Dimple Tube and Fin Radiator
• 1 x Extruded Tube Oil Cooler

COMPATIBILITY

• Mazda R100 10A/12A/13B Rotary (1967-1971)

ADDITIONAL ITEMS

• Radiator Cap Large 16psi Closed Valve with Lever - SKU: 10330

• 16" Fan Straight Blade Pull 12V (1469CFM) (62mm Deep) - SKU: PWAC16ST

PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler,
